Vertical Turning Lathe Machine Retailer in Batala Punjab India

Vertical Turning Lathe Machine, Automatic Grade : Automatic

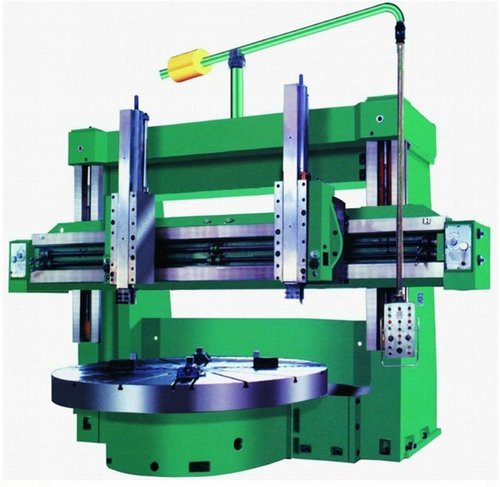

Name: Vertical Turning Lathe Machine
Brand: New Diamond Foundry
SKU: EI-6080340
Price: 2500000 INR
Availability: InStock
Rating: 4.4 (29 reviews)

Price:

25 Lakh / Piece Get Latest Price

Sold By : New Diamond Foundry

Send Inquiry

Product Specifications

Automatic GradeAutomatic
Brand NameNew Diamond Foundry
Country of OriginIndia
CertificationCE Certified
TypeVertical Lathe Machines
Rated Power1-3kw
ConditionNew
Supply TypeManufacturer, Supplier

Preferred Buyer From : All over the world

Technical Specification

Model	NDF-1	NDF-1.5	NDF-2	NDF-2.5	NDF-3	NDF-4	NDF-5
Max. Turning Diameter	1100	1700	2200	2700	3200	4200	5200
Table Diameter	1000	1500	2000	2500	3000	4000	4500
Max. Working Height	600	1000	1200	1500	1600	1600	1600
Max. Vertical Travel of Ram Head	500	550	650	800	900	900	900
Swivel Angle of Ram Head	±30º	±30º	±30º	±30º	±30º	±30º	±30º
Horizontal Travel of Side Ram Head	250	300	400	500	5000	600	600
Vertical Travel of Side Ram Head	400	700	900	1200	1300	1300	1300
No. of Table Speed	Stepless Infinitely Variable speeds with AC Variable Frequency Drive
Range of Table Speed RPM	22068	14702	44285	44247	42009	44206	0.7-7
No. of Feeds Vertical/ Horizontal	6	6	6	6	6	6	6
Range of Feed Vert./Hor. (mm/min)	44267	39452	38722	0.5-6	0.5-5	0.5-5	0.5-5
Rapid Traverse of Head (mm/min)	500	500	500	500	500	500	500
Main Motor H.P.	7.5	10	15	20	25	40	50
Ram Feed Gear Box Motor (H.P.)	3	3	3	5	7.5	7.5	7.5
Auto Lifting of Corss Rail Motor (HP)	3	3	3	5	5	7.5	7.5

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

Company Overview

Retailer Of Shaper Machine, Industrial Plano Miller Machine, Gear Head Lathe Machine, Heavy Duty Lathe Machine, Shaft Turning Lathe Machine, Roll Grooving Lathe Machine, Sugar Roll Turning Lathe Machine, Rail Cutting Planer Machine, Extra Heavy Duty Roll Turning Lathe Machine, Geared Lathe Machine, Double Column Radial Drill Machine, Single Column Radial Drill Machine, Horizontal Boring Machine, Milling Head, Heavy Duty Plano Miller Machine.
