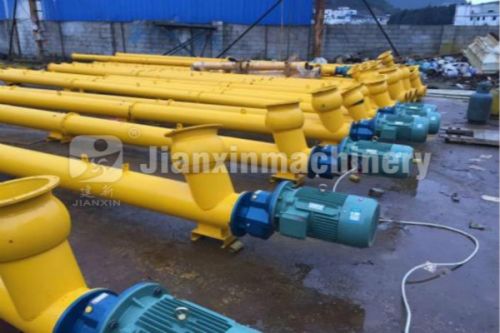

Jianxin Machinery Cement Screw Conveyors

Description
As a professional version of the modular TU screw conveyor system, the new screw conveyor and feeder are made of carbon steel, with suitable surface treatment and powder coating. They consist of a tubular groove with at least one inlet and outlet vents, each with a weld flange, a helical spiral welded on the middle pipe, and a connecting sleeve at each end, The two-end bearing assembly completes the self-regulating shaft seal (one of the bearing components is integrated into the drive unit) and a plurality of intermediate hanging bearings (depending on the total length). ES screw Conveyor and feeder equipped with suitable gear motors.

Characteristics

1. Powder Coating
(1) 7 diameter of outer tube
(2) outer tube with welded end flange, one inlet, one outlet, inspection port below first inlet and each intermediate hanger bearing
(3) Standard flange part of the tubular shell, one of the parts to be measured
(4) Spiral screw welding in the center tube
(5) End bearing assembly with self-adjusting shaft seal
(6) Spline shaft coupling
(7) Lifting the perforations on each pipe segment
(8) Standard flange type motor
(9) Maintenance-free aluminum casting middle hanging bearing with self-lubricating sliding bushing
(10) Compact design and overall size
(11) Reduce the number of parts and spare parts
