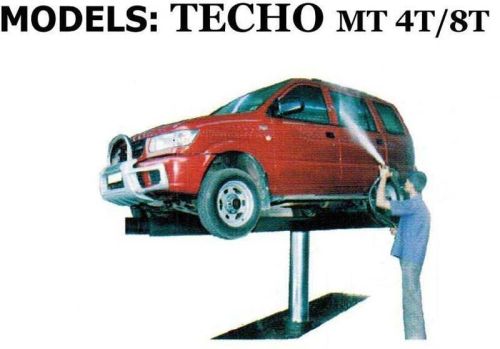

Centre Post Car Lift

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Centre Post Car Lift is widely used for the purpose of washing cars in garages. We provide different models of Centre Post Car Lift with different lifting capacities ranging from 4.0 to 16.0 tons approximately. Our Centre Post Car Lift is easy-to-operate and has the capacity to lift vehicles at optimal heights. Salient Features Hydro Pneumatic Standard model at 4 ton capacity Separate model with spider arm design for 4 ton capacity Plunger finish – hard chrome plated to 20 microns Heavy duty rigid ramps accommodate a wide range of vehicles of varying size and type

View More Details

Send Enquiry

Technical Specifications

Specification	MT 4T	MT 4T ST	MT 4T SRP	MT 8T
Capacity	4 Ton	4 Ton	4 Ton	8 Ton
No. of Posts	1 No.	1 No.	1 No.	1 Nos.
Plunger Diameter	270 mm	270mm	270mm	320mm
Operating pressure	9 to 12 kg/cm2	9 to 12 kg/cm2	9 to 12 kg/cm2	12 kg /cm2
Lifting height	1500 mm	1500mm	1500mm	1500 mm
Ramp length	4500 mm	-	4500 mm	5500 mm
Spider arm	-	Inclusive	-	-
Tyre rest platform	-	-	Inclusive	-
Oil fill capacity	150 ltrs.	150 ltrs.	150 ltrs.	175 ltrs.
