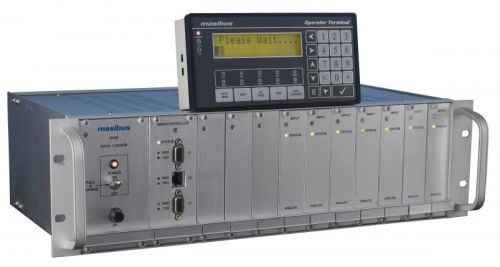

Channel Logger DAQ Module

The 8040 is a versatile solution for many data acquisition requirements with 512Kbyte memory for up to 128 channels. From basic data logging to monitoring requirements, communications and software tools make the 8040 more than just a recording device.

8040 is available in two versions, a half 19" rack module and full 19" rack module. It is expandable up to 48 and 96 channels respectively through the use of 8-Channel plug-in modules accepting universal inputs. Parameters of these modules can be monitored, configured and calibrated using local operator terminal or mACplus software remotely.

Data logger enables user to log and monitor process data with time-stamp. Input channel number can be selected for logging and printing for specified time interval from operator terminal keys or using Masibus mACplus software. Print on demand facility is also available. Data logger can also be interfaced with SCADA/PLC using RS485 port.

8040 provides accurate and high-speed measurement with scanning speed of upto 112 channels/Sec. 8-channels DO module provides alarm signal to annunciate abnormal process condition. 4 alarm levels per channel can be configured.

• 16 to 112 channels
• 512KB non-volatile flash memory
• Universal input for each channel-mix
• High noise rejection and isolation
• Scanning speed: 16 to 112 Channels per second
• Two RS485 ports
• One Centronics printer port
• Operator terminal with 2x16 LCD
• Programming via Operator terminal or PC
