    Chinamade High Performance Handheld Clamp On Current Transducer

    Chinamade High Performance Handheld Clamp On Current Transducer

    ₹ 18,200 / Piece
    Get Latest Price
    • MOQ3 Piece(s)
    • MaterialPC+ABS+Polycarbonate, UL94 V0
    • StandardEN 61010-1, EN 61010-2-032, IEC60044-1
    • Secondary Current0 - 100mA AC (customized)
    • InstallationClamp type
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Beijing Gfuve Electronics Co.,Ltd.
    location China
    View Number
    • calendar Member Since 12 Years
    • building Nature of Business Manufacturer
    • Year of Establishment 2005

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Secondary Current0 - 100mA AC (customized)
    • StandardEN 61010-1, EN 61010-2-032, IEC60044-1
    • InstallationClamp type
    • MaterialPC+ABS+Polycarbonate, UL94 V0
    • Ratio1000: 1 or 2000:1 (customized)
    • Output signal (AC voltage)From 0 to 2V AC at nominal input current
    • Weight (g)280
    • Dimensions (L x W x H) (mm)48 x 179 x 27
    • Output modeLead output (2.5m)
    • Temperature range-20°C to +55°C
    • Frequency range40Hz-2000Hz
    • Holding wire diameter (mm)φ13
    • Primary current0 - 100A AC
    • Accuracy class0.1%, 0.2%
    • Over voltage categoryCAT III 600V
    • Dielectric strength3KV 50Hz/60Hz at 1 minute
    • Output signal (AC current)From 0 to 100mA AC at nominal input current
    • Max. Cont. Input current120A
    • Jaw colorRed, yellow, blue, green, black
    • Max. voltage not insulated conductors600 V

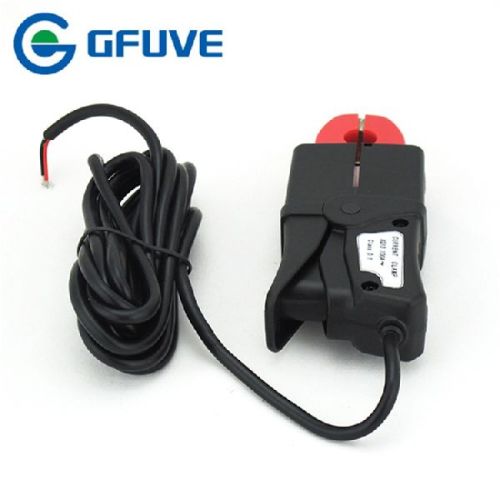

    The model XQ13 handheld clamp on current transducer is suitable for 10A-100A cable online measurement, it belongs to high performance transducer ï¬eld.
