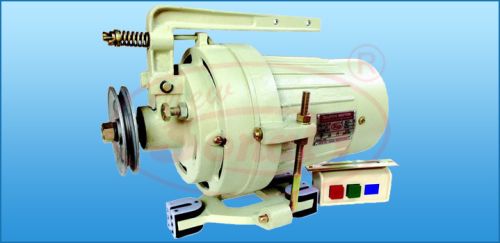

SONAL Clutch Motor

Get Latest Price

Sold By : Sonal Industries

Send Inquiry

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

PERFORMANCE

The motor is especially designed with powerful performance for industrial sewing machines purpose.

SMOOTH ROTATION

Vibration and noise are minimized.

LOW TEMPERATURE RISING

The temperature rising of the motor is extremely low.

ACCURATE CLUTCH OPERATION

The size and weight of the flywheel eliminate speed reduction when it engaged with the clutch. Heavy-duty lining material prevents any slipping. Therefore the accurate clutch operation permits instant starting and stopping of the sewing machine.

ADJUSTABLE CLUTCH HEAD

The operating lever can always be kept in line with the pitman rod and foot treadle.

Loosen the bracket holding screw so that the pulley side can end of bracket rotates freely. Now adjust the clutch lever to the most suitable operating position. Then, tighten the bracket holding screw and commence operation.

BELT TIGHTENER

The motor is provided with a belt tightener of American dimensions. The tension of the belt is easily adjusted by simply loosening the adjustment nut.

SONAL CLUTCH MOTOR PRODUCTLIST

Model	Watt	H.P.	Volt	Phase	Poles	Hz	Speed (R.P.M)	Net Weight (KG)	Gross Weight (KG)	Dimension LBH
SS-200	200	0.25	230		2P		2800	12	12.5	310180230
SS-250	250	0.33	230		2P		2800	19	20.5	350210260
SS-402	400	0.5	230	1	2P		2800	20.5	22	360210260
SS-404	400	0.5	230		4P		1400	20.5	22	360210260
SS-702	700	1	230		2P	50	2800	22	23.5	360210260
SS-704	700	1	230		4P		1400	22	23.5	360210260
ST-402	400	0.5	440		2P		2800	20.5	22	360210260
ST-404	400	0.5	440	3	4P		1400	20.5	22	360210260
ST-702	700	1	440		2P		2800	22	23.5	360210260
ST-704	700	1	440		4P		1400	22	23.5	360210260
