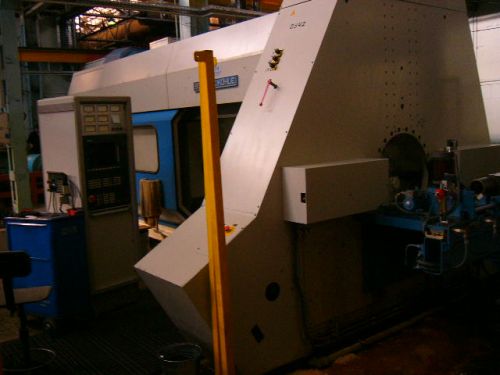

CNC Flow Forming Machine

The lathe is made to produce Pneumatic and Hydraulic High Pressure Cylinders of various Diameter, Length and Thickness combinations.
bullet
The Hydraulic Spinning Lathe, make BoKo, manufactured in year 1994 is equipped with three working rollers, piece ejector, oil cooling equipment and lubrication unit.
bullet
Headstock is of welded and stabilized steel, with interior ribs to give a larger hardness. It contains the main spindle in tempered and rectified steel, mounted on special bearings to support the radial and axial efforts. At the end, there is the mould coupling according to DIN 55027 size 15.
bullet
Inside, there is a set of gears formed by the 3 axis and the cog-wheels, made in alloyed steel, tempered and rectified and moved by the motor, which allows to obtain speeds without notching from 50 to 600 rpm.
