Green CNC Horizontal Boring Machines Retailer in Batala Punjab India

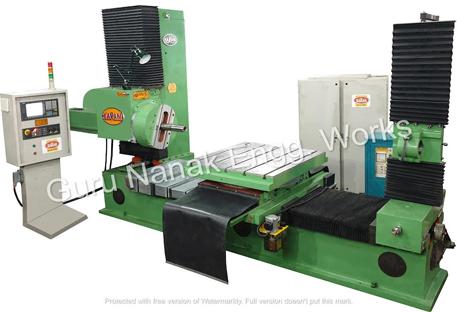

Green CNC Horizontal Boring Machines, For Industrial

Sold By : Guru Nanak Engg. Works (regd.)

Product Specifications

ConditionNew
ApplicationIndustrial
Number Of FlowerHorizontal
Country of OriginIndia
Supply TypeManufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Product Overview

Horizontal CNC boring machines can perform various machining operations, such as contour machining, boring, reaming, forming, tapping, end machining, machining, and drilling. When boring large parts with the help of a horizontally positioned spindle, a horizontal boring machine is usually used.

Technical Specifications: (in Mm)

Boring spindle	Spinder Diameter	80mm	100mm	110mm
Boring spindle	Taper	ISO -40 With automatic clamping and Release Of tools independent milling spindle	ISO -50 With automatic clamping and Release Of tools independent milling spindle	ISO -50 With automatic clamping and Release Of tools independent milling spindle
Traverses	Cross of Traverse Table – X	1100mm	1300mm	1500mm
	vertical Traverse of hed stock- y	1000mm	1200mm	1300mm
	axial Traverse of boring spindle-z	500mm	550mm	600mm
	longitudinal of Traverse Table-w	1500mm	1600mm	1700mm
Rotary work table	Size ( standard )	1000x1000	1300x1300	1400x1400
Rotary work table
T Slots	Number	5	6	6
	width	19mm	22mm	22mm
	permissible wight	3000kgs	4000kgs	5000kgs
spindle speed ( continuous variation )	Boring spindle	10-2000rpm	10-2000rpm	10-2000rpm
	milling spindle	2.5-250rpm	2.5-250rpm	2.5-250rpm
	cnc system	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS
Feeds	Continuous variation of speed at x,y,z,& w axis	4-2000mm/min	4-2000mm/min	4-2000mm/min
	rapid feed rate at x, y, z, & w axis	2000mm/min	2000mm/min	2000mm/min
	Continous variation of feed for table rotation	0.001-1 rpm	0.001-1 rpm	0.001-1 rpm
Power	main motor ( servo spindle motor )	11kw	15kw	20kw
