Yantrang Precise cnc turning center

Sold By : Yantrang Precise

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

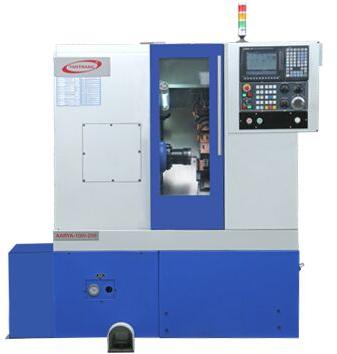

We are the leading manufacturer of CNC Turning Center

Model: AARIYA
SPECIFICATION
Â CAPACITY 100200
SWING OVER BED 275
MAXIMUM TURNING LENGTH 200
STANDARD TURNING DIA. 100
CHUCK SIZE 125
MAX. TURING DIA. 150
X-AXIS TRAVEL 300
Z-AXIS TRAVEL 200
RAPID TRAVERSE 20M
Â AXES
Z AXIS BALL SCREW 25 x 10
MOTOR TORQUE (Z axis) 3.5NM
X ASIX BALL SCREW 25 x 10
MOTOR TORQUE (X axis) 3.5NM
Â MAIN SPINDLE
SPINDLE MOTOR 5.5 3.5
SPINDLE BORE 38
SPINDLE NOSE A2-4
MAXIMUM BAR CAPACITY 25
SPINDLE SPEED RANGE 50-5000
FULL POWER SPEED RANGE 750-3500
Â TOOL
MAX. BORING BAR DIA. 32
TOOL SIZE (CROSS SECTION) 20 x 20
Â OTHERS
POSITIONING ACCURACY (MICRON) 0.01
REPEATABILITY (MICRON) 0.005
