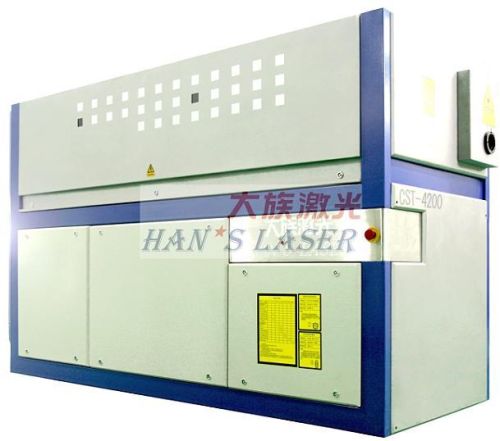

Co2 Laser Generator

We are offering Co2 Laser Generator.
1Jointly R&D by Han’s laser, Germany and Switzerland, its photoelectric transformation rate could reach as rapid as 25%
2, Its control system is independently R&D by Han’s .It could render PC to operate and control generator directly or insert itself into the machine tool for joint control with CNC.
3 As for high voltage power supply, its outputs could be categorized into, continuous wave, gate pulse, high power pulse and ultra-high power pulse, which could quickly response to the exterior control and perform perfect process around the corner.
4 The pneumatic system is adjusted by high precision apparatus, which could adjust the air release according to the features of turbine, greatly reduce air consumption.
5 Beam expanding equipment is added outside the cavity resonator, which greatly better its focus ability.
Carbon steel Stainless Steel Aluminum:
Maximum Cutting Thickness(mm) 22 10 6
Maximum Cutting Speed (m/min) 9 9 6.5
Maximum Cutting Thickness(mm) Carbon steel Stainless Steel Aluminum:
CST 2200 16 6 3
CST3300 20 8 5
CST4200 22 10 6
Maximum Cutting Thickness
Maximum Cutting Speed (m/min) Carbon steel Stainless Steel Aluminum:
CST 2200 8 9 4.5
CST3300 8 9 6
CST4200 9 9 6.5
