Collecting System

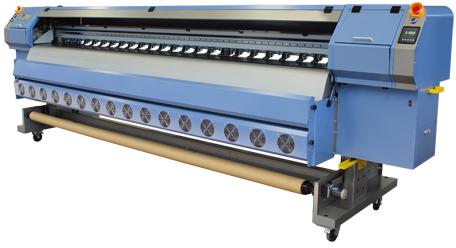

Allwin 512i adopt km512i30pl printhead which can achieve high quality printing for short distance observation. Optional for professional collecting system to achieve consistent printing quality and safety of printhead in high-speed printing. Second ink tank, printhead heating system, three-stage adjustable temperature heater for media. Adopt high power&intelligent infrared drying system and fan drying system to ensure immediate drying after printed. Adopt double linear rails, panasonic servo motor, negative pressure ink supply system. Standard for touch screen operation system.
1.patent technology to ensure 100% achievement in 100m
printings combination;
2.the whole printer takes eco solvent printer's mechanical
precision and technology as production standard;
3.secondary ink tank and printhead plate heating system,
suitable for low temperature working environment in winter;
4.intelligent infrared heating system to speed up picture drying(optional);
5. Standard for auto collecting system;
6.512i series adopts panasonic 250w motor for faster and more stable printing
7.printing 2400sqfthour.
