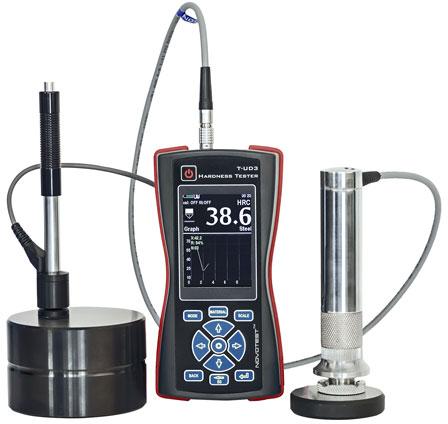

COMBINED HARDNESS TESTER

Sold By : Flexitest Material Testing Instruments

Product Specifications

Total Carbohydrate3 (1+2) years
Operating environmentTemperature:-20oC ∼ 40oC, Humidity: 30% ∼ 80%R.H.
IndicationColor LCD display (320 x 240)
Net weightApprox. 0.3kg (without probe)
FeaturesMeasuring surface hardened layers hardness, Wide range of hardness testing, Various measurement modes, Calibration of any scale in any range, Convenience and ease of measurement
Gross weight (package)2kg
Instrument dimensions160 x 75 x 30mm
Battery lifeApprox. 10 hours.
Power supplyDC 4,5V (3 pcs batteries AA)
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader

Preferred Buyer From : All over the world

UCI probe types	1kgf (10N) 2.2 lbf 5kgf (50N) 11lbf 10kgf (98N) 22lbf
Leeb probe types	D DC DL C D+15 E G
Measuring range	HRC:20 ∼ 70 HB:90 ∼ 650 HV:230 ∼ 940 Tensile strength, MPa: 370 ∼ 1740 User calibrations for any range (for example: HV100-1600)
Measuring accuracy	HRC: 2HRC HB: 10HB HV: 15HV
Standards	ASTM A1038 ASTM A956 ASTM E140
Indenter	UCI probe - Diamond indenter Leeb probe - Hardened ball
Measuring direction	Any direction 360o
Data storage	Limited only by the memory card up to 32Gb
Communication	Upload data to PC and export as a spreadsheet (USB cable and software included )
Hardness scales	UCI probe - HRC, HB, HV Leeb probe - HRC, HRB, HB, HV, HL, MPa Additional custom scales for calibration
Materials	Ultrasonic (UCI) probe - pre-calibrated for steel Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper Additional custom materials for calibration
Data display	Load applied/contact (UCI) Angle (Leeb) Single test result Max, Min, Average of tests Number of tests, Deviation Var. coeff. Histogram, Signal and Smart Modes (Filter of incorrect measurements).
Indication	Color LCD display (320 x 240)
Operating environment	Temperature:-20oC ∼ 40oC Humidity: 30% ∼ 80%R.H.
Power supply	DC 4,5V (3 pcs batteries AA)
Instrument dimensions	160 x 75 x 30mm
Net weight	Approx. 0.3kg (without probe)
Gross weight (package)	2kg
Battery life	Approx. 10 hours.
Warranty	3 (1+2) years
