Compression Load Cell

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The robust and versatile LD3 weight sensor is installed under a load bearing support. This load cell compensates for changes in output due to the natural movement of a vessel. Click....

View More Details

Send Enquiry

Company Information

Kistler Morse Automation Limited

Cherlapalli, Hyderabad, Telangana

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

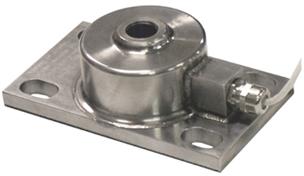

The robust and versatile LD3 weight sensor is installed under a load bearing support. This load cell compensates for changes in output due to the natural movement of a vessel.

Click Here

Mechanically secure by being bolted together rather than having floating mounting hardware
Mounting hardware options attach to different types of tanks; including horizontal tanks
Allows for thermal changes, providing accurate readings when physical changes in the tank occur due to thermal expansion and contraction
Constructed of 17-4 Stainless steel, heat treated to PH900 for a strong, low profile load cell
NEMA – 6P water resistant

Specifications

Average Accuracy: 0.08%
Excitation Voltage: 10 to 30 VDC
Excitation Current: 3 mA
Defection: Maximum, depending on capacity 0.012 in.
Functional Integrity: 2x rated load in compression
Structural Integrity: 4x rated load in compression
Operating Temperature: -30° to 150° F (-34° to 66° C) – Standard
Operating Temperature: -30° to 200° F (-34° to 93° C) – High Temperature
Dimensions:
Installed Height: 2.7 in. (69 mm) for up to 10K; 3.3 in. (84 mm) for 15 to 25k models
Footprint: 6 x 3.5 in. (152 x 89 mm) (Length x Width)
