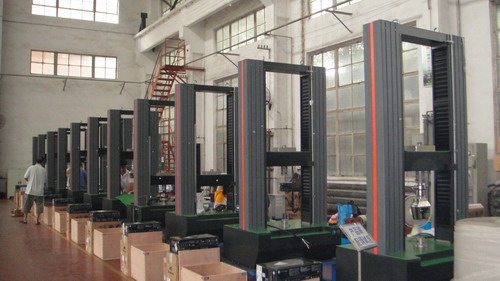

Computer Control Electronic Universal Testing Machine

We are offering wdw series computer control electronic universal testing machine.
usage and characteristics
wdw series electronic universal testing machine is used metal and nonmetal (including composite materials) for the normal and high, low temperature tensile, compression, bending, shear, stripping, tear, load, relaxation, reciprocating and other static mechanical property test and analytical investigation, which can calculate the test parameters astigmatically like reh, rel, rp0.2, fm, rt0.5, rt0.6, rt0.65, rt0.7, rm, e and so on, and can test and provide data according to gb, iso, din, astm, jis and other international standard.
type/specification wdw-01,02,05,1, 2, 5 wdw-10, 20, 30, 50 wdw-100, 200, 300
max. Test force(kn) 0.1, 0.2, 0.5, 1, 2, 5 10, 20, 30, 50 100, 200, 300
measuring range of testing machine 0.4%-100%fs
measurement accuracy of testing machine within ±0.5% of indicating value
class of precision 0.5 class
resolution of test force ±1/200000 of max.test force, up to ±1/300000, not marking graduation within full range
range of speed 0.005-500mm/min
speed accuracy within ±0.5%
indicating error of deformation within ±0.5% of indicating value
measuring range of deformation 0.2%-100%fs
resolution of dis-formation 1/20000 of max.deformation up to 1/300000
resolution of displacement 0.25μm
indicating error of displacement within ±0.5% of indicating value
distance of tensile 800mm 700mm 600mm
space of compression 900mm 800mm
effective testing width 400mm 500mm
power 380v 50hz 1kw 380v 50hz 1.5kw 380v 50hz 2-5kw
remark the equipped fixture can according to customer’s need to alternative or specially manufacture.
the equipment can add the transducer to add the range of test force.
the tensile distance of equipment can add according to customer’s requirement.
