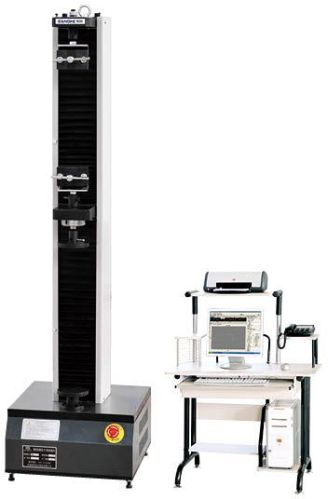

Computer Controlled Electronic Universal Testing Machine

We are offering Computer Controlled Electronic Universal Testing Machine.
1. Model: WDW-2
2. Product name: computer controlled electronic universal testing machine.
3. Introduction and application:
The equipment can be used to do tensile, compression and bending test to various kinds of materials. It adopts precise auto control and data acquisition system. The Max bearing force, compression force, tensile strength, compression strength, elongation, deformation can be displayed on the computer after test. And if the computer is connected with printer, the test results can be printed.
If there are special requirements, we can also offer special testing solutions for you.
4. Advantages
1) The equipment is equipped with small controller which can adjust the position of the crossbeam easily and conveniently.
2) The equipment has the functions of limit position protection, over load protection, over current protect, safe and reliable.
3) It can switch from the following curves: Load-Time, Deformation-Time, Load- Deformation and Load- Displacement.
5. Main technical parameters
Max test force 2KN
Precision of the equipment 1%
Measuring range 20N-2KN
Relative error of indicated value 1%
Resolution of testing force 1300000
Speed range 0.005-500mmmin
Test span 75mm
Stoke of crossbeam 1000mm
Voltage and power 220V, 50Hz, 400W
Dimension of equipment 410X430X1550mm
Weight 100kg
