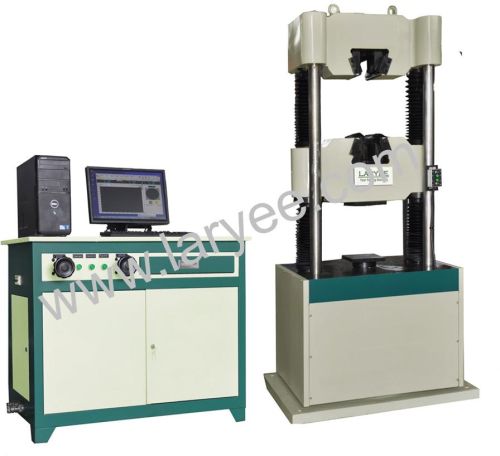

Computer Display Hydraulic Universal Testing Machine

We are offering computer display hydraulic universal testing machine wew--300, 600, 1000, 2000.
this series machines are widely used for tension, compression, bending and shearing test of metal materials and also used for compression and bending test of nonmetal materials, such as cement, concrete and so on. Equipped with simple auxiliaries, it can be used for mechanical property testing of fastener, wire rope and components. They are perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining enterprise. The machine is designed and made according to iso75001, astm a370, astm e4, astm e8 and bsen standards.
parameters wew-300 wew-600 wew-1000
measuring range of force(kn) 6-300kn 12-600kn 20-1000kn
clamping diameter for round specimen(mm) φ10-32 φ13-40 φ13-φ60
clamping width of flat specimen(mm) 70 70 120
clamping thickness of flat specimen(mm) 0-15 0-30 0-40
testing space tension 750 800 650
compression 650 700 600
platen size φ130 φ180 200x200
distance of bending by pass roll(mm) 30-580 30-580 30-800
weight(kg) 2700 3000 4120
