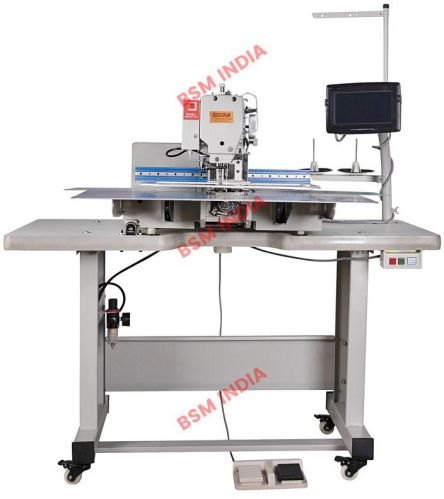

    Bsm India Pneumatic Powder Coated Computerized Pattern Sewing Machine

    Price: rupee 2.40 Lakh / Unit Get Latest Price
    • Sold By : Bengal Shoe Machinery Pvt. Ltd.

    Product Specifications

    • FinishingPowder Coated
    • Driven TypePneumatic
    • MaterialMild Steel
    • Brand NameBSM India
    • Operating TypeAutomatic
    • Power1-3kw
    • UsageTextile Industry
    • Total Carbohydrate1 Year
    • Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Importer, Trader

    Product Overview

    This is a state-of-the-art sewing machine designed to streamline and automate the production of intricate patterns and designs. With its advanced computerized technology, this machine offers precise stitching and high-speed operation, making it an ideal choice for various industries such as apparel, automotive, upholstery, and home textiles.

    • Computerized Operation: The machine is equipped with advanced computerized technology that allows for precise and automated stitching of complex patterns. Users can create and input custom designs through the machine's user-friendly interface, eliminating the need for manual pattern marking and reducing production time.
    • Large Sewing Area: With a spacious sewing area of 300*200mm, this machine offers ample space to sew large-scale patterns and designs. The generous sewing area enables the creation of intricate and detailed designs on a wide range of fabrics and materials.
    • High-Speed Performance: The Automatic Computerized Pattern Sewing Machine is capable of high-speed stitching, significantly increasing productivity and efficiency. The machine's precise motor control and optimized thread tension system ensure consistent stitch quality, even at high sewing speeds.
    • Versatile Stitching Options: This machine offers a wide range of stitching options, including straight stitching, zigzag stitching, decorative stitching, and more. With the ability to customize stitch length, width, and density, users can achieve a variety of design effects and meet diverse application requirements.






    Technical Specification

    ModelBS-2010BS-3020BS-6040
    Sewing typeSingle Needle Lockstitch
    Max sewing speed2,800 Rpm2,800 Rpm2,800 Rpm
    Stitching area200x100 Mm300x200 Mm600x400 Mm
    Cloth feeding deviceIntermittent Feeding (DRIVEN By Pulse Motor)
    Needle gauge0.05 -12.7mm
    Can be saved by code50000 Stitches/ Sewing Pattern
    Highest sewing stitched for each pattern20000(A Pattern)
    StorageSd Card Built-In Memory:2gb, 900 Kinds
    Clamp drivePneumatic
    Clamp heightMax 35 Mm
    Clamp lowestOne-Piece Pressure Foot
    Pressure foot lift up22 Mm
    Intermittent pressure foot0.2-4.5 Mm Or 4.5 Mm (FACTORY Settings:3 Mm)
    Shuttle (hook)Double Hook(Standard)
    Thread wiper deviceStandard Equipment
    Trimmer deviceStandard Equipment
    Date memoryFlash Memory(Can Save With Sd Card) 3 Inch Disk 2hd/1.44bm.2dd,Usb Interface
    No. of user programs50
    Loop program number9
    MotorServo Motor 750w
    WeightHead: 160 Kg, Operating Panel: 0.6 Kg, Control Box: 16.2 Kg
    PowerSingle Phase 220v 3-Phase 200v/380v/400v 500va
    Air pressure0.5 Mpa 1.81/Min

    Company Overview

    Manufacturer Of Shoe Sole Stitching Machine, High Post Sewing Machine, Adjustable Pad Sole Marking Machine, Automatic Cover Type Sole Attaching Machine, Upper Steaming Machine, Shoe Upper Hammering Machine, Hydraulic Shoe Sole Hammering Machine, Flat Sole Press Machine, String / Sock Lasting Machine, Sole Stitching Cylinder Bed Sewing Machine, Flat Bed Single Needle Sewing Machine, Double Station Slider Type Heat Transfer Fusing Machine, Single Needle Post Bed Roller Feed Sewing Machine, Polyamide Hot Melt Granules, kl-24 hot melt adhesive glue.
    • building Business Type Manufacturer / Exporter / Service Provider / Supplier / Retailer / Distributor / Importer / Trader
    • Number of Employees 21 - 50
    • Year of Establishment 1984
    • gst icon GST No. 07AACCB4067D1Z0
