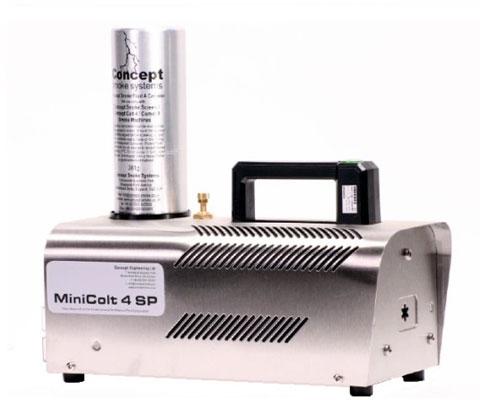

MiniColt 4S Smoke Generator

Sold By : Measuretest Instruments

Product Specifications

Brand NameConcept Smoke System
Operation “Off Power”On and Off power
Smoke Particle Diameter (micron, mmd)0.2
ModelMiniColt 4S
Heat Exchanger (watt)1100
Weight (kg)5
Power Supply230vAC, 50-450Hz (Basic), 50-60Hz Hybrid
Size (cm)33 x 15 x 19
Smoke Output (m3/min @ 1.5m vis)0-125 Fully Adjustable
Duration of aerosol at max output (min)14
Warm up time from cold (min)5
Optional110vAV, 50-450Hz (Basic), 50-60Hz Hybrid
Supply TypeSupplier, Distributor

Preferred Buyer From : All over the world

Product Overview

The MiniColt 4SP has been designed for air flow testing, visualization tests, and particle recovery work. It is a completely portable unit and has the ability to produce anything from a small wisp of artificial smoke to a large plume, on and off the power. Pharmaceutical grade smoke chemical, stored in a one-piece aluminum canister is forced under pressure through the precision machined heat exchanger, where it is vaporized. We are manufacturers, suppliers and exporters of non toxic smoke generator machine for clean room in Mumbai India to worldwide company.

Manufactured by Concept in the UK under ISO 9001
Nontoxic, persistent, water-based – controllable smoke
Off Power capable or continuous maximum output if connected to mains power
Fully rechargeable in just 5 minutes
Extremely simple operation
Lightweight, hand-held smoke generator
The particle size of just 0.2-0.3 micron mmd (mass median diameter)– the smallest in its class.

Download

Download Detail File : Click Here
