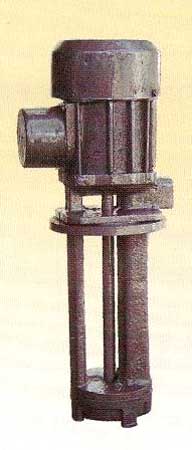

Virak Coolant Pump

We are one of the prominent manufacturers and suppliers of coolant pumps. the coolant pumps are accessible in different range as per the requirements of the clients. applications : virak pumps can be used for supply of coolants on working surface of light and heavy duty machine tools such as lathes, milling, drilling, grinding, etc. salient features :

• virak cooling pumps are vertical type of centrifugal pumps driven by a three-phase induction motor. These pumps are suitable for all coolants up to 150 centistokes and temperatures up to 60 c.
• virak pumps are provided with an oil seal to prevent the ingress of oil into the pump motor windings.
• dynamically well-balanced rotor thus giving good mechanical stability
• the terminal box which is located on the opposite side of the pump outlet can be rotated through 90 or 180.
• pumps with 'b' class insulation motors are available on request.

specifications :

• motor : 3-ph, 440/415 v, 50 hz., 2880 r.p.m.
• totally enclosed type squirrel cage induction motor

specifications sizetypepower (h.p.)immersion depth (mm)outlet connectionpcd to mount the pump (mm)min. Capacity to pump water against a head of in ltr/min.
1m - 2mapprox weight (kg)virak 0.101/1200.1001203/4th" or 1/2th" bsp11536 - 309.701/1700.1001703/4th" or 1/2th" bsp11536 - 3010.40virak 0.252/2200.2502203/4th" or 1/2th" bsp11570 - 6314.75virak 0.503/2200.5002201 " bsp160150 - 12025.75virak 1.004/2701.0002701 " bsp160280 - 24035.00 note

• we also develop coolant pumps to suit your specificrequirements.
• keeping up with the technological achievement all the specifications are subject to change without any prior notice.
