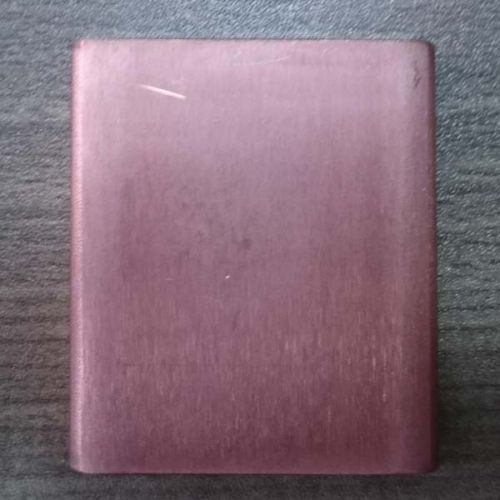

Copper Clad Aluminum Strips

Purchase from us the Copper Clad Aluminum Strips at market-leading prices. The Copper Clad Aluminum Strips, offered by us, are procured from reliable vendors and entities across the world. Owing to corrosion resistance, low maintenance, fine finish and accurate dimension, our Copper Clad Aluminum Strips are used in rail transportation, shopping malls, etc. We quote nominal prices and promise timely delivery of even urgent and bulk orders.

What is copper clad aluminium strip?
According to the characteristic of copper and aluminum, apply special technology to make copper and aluminium layer integrate and diffuse, to become a dual-metal composite conductor.
copper clad aluminium Cross-sectional area, density and other technical parameters

Parameters Comparison among Copper clad aluminium strip, copper strip and aluminium strip

What are the applications of copper clad aluminium strip?
copper clad aluminium strip is High current-carrying conductor, the end users are factory, rail transportation, big shopping malls, big building, etc, it can be applied in all the locations where high currents are used.

What are the advantages of copper clad aluminium strip?
Conductivity : as a new type of current- carrying conductor, it has not only the Strong antioxidant capacity, low contact resistivity features of copper strip, but also the light weight, low cost advantages of aluminium strip.

The various parameters of copper clad aluminium strip are closer to those of copper strip, the conductivity of former is 86% of copper strip, it could completely replace copper strip as long as you choose a bigger standard size than the original copper strip.
Cost advantage : the copper clad aluminium strip saves more than 40% in cost compare to copper strip with the same size per meter, this helps the corporations save a lot in the raw material purchasing expenses.
Processing performance of copper clad aluminium strip
In power Transmission and Power DistributionEquipments, conductors need to be applied with shearing, punching, bending , etc machining processes, copper clad aluminium strip could fulfill all these processing requirements. While it has some requirements for the processing methods, processing equipments.
Shearing : shear with a special mold, cutting from the side towards the center of the conductor, do not cut with vertical punch, hydraulicsawingoffcan also be used, but at the bottom pad need to be used.

Punching : punching with a special mold, space need to be leaved between molds. While punching using the hand drill at the scene, drill need a bitspecialgrinding, preferably punching afterbending.

Bending : There must bea suitable distance between two points of the die, allowsfreedomofmovement and deformation, when the bending angel are greater than 90 degree, must make the two points close tightly. Bending radius must be double size of the narrow side in the composite conductor.
