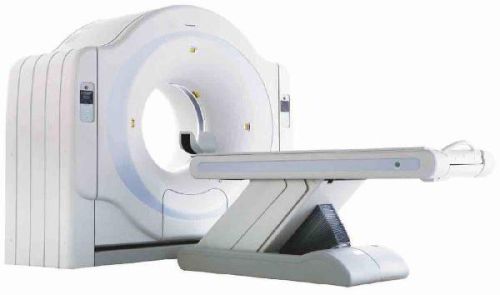

CT Scanner

CT Scanner

Listing ID #3428001

Get Latest Price
  • MOQ 1 piece
  • Brand NameAnalytical Technologies Limited
  • ConditionNew, Used
  • ApplicationClinic Use, Hospital
  • Model NumberiMager 3016 HD CT Scanner
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

Analytical Technologies Limited verified-icon
Vasna Road, Vadodara, Gujarat
View Number
  • Member Since 10 Years
  • Nature of Business Retailer
  • GST No. 24AAGCA4017N1ZQ

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Brand Name Analytical Technologies Limited
  • Condition New, Used
  • Application Clinic Use, Hospital
  • Model Number iMager 3016 HD CT Scanner
  • Type Ct Scan Machine
  • Country of Origin India
  • Patient opening 70cm
  • Minimum slice thickness of scan 0.625mm
  • Detector type OptiWave rare-earth ceramic detector
  • 3D laser orientation Provided
  • Direction of TOPO Front-backˈLeft-right
  • Maximum speed of vertical movement 20mm/s
  • Foot pedal of patient table control Provided
  • Mechanical tilt capability ±30°
  • Numbers of detector rows 32
  • Type of cooling Oil cooling + Air cooling
  • Storage of hard-disk 1T×2
  • High contrast resolution 21lp/cm@0%MTF
  • Maximum patient weight 205kg
  • External X-ray enable Interface for Foot-Pedal Provided
  • Tube kV selections 80kVˈ100 kVˈ120 kVˈ140 kV
  • Gantry tilt mode Dual-mode gantry tilt
  • Maximum horizontal-movable range 1850mm
  • Table horizontal-scannable range 1800mm
  • Dynamic flying focal spot technology Provided
  • Numbers of detector columns 29184
  • Heat dissipation rate 815kHU/min
  • Gantry type Low voltage slip-ring with AccuSlip-ring technology
  • Acquisition mode 16 × 0.625mm, 16 × 1.25mm
  • Slice numbers per rotation 16
  • Gantry remote-Control Provided
  • isotropic imaging resolution 0.625mm
  • Detector columns of channels per row 912
  • Data-transfer type Data-transfer type
  • Tube mA range 10~420mA
  • mage noise <0.25@28mGy
  • Maximum continuous output of HV generator 50kW
  • Tube anode heat capacity 5.0MHU
  • Scan FOV 52cm
  • Range of CT numbers -32767~32768
  • Width of Z-axle detector 20mm
  • Gantry driven type Strap-driven
  • Automatic exposure controlË„mA ModulationË… Provided
  • Analytical energy conservation management Provided
  • Image reconstruction matrix 512×512ˈ1024×1024
  • able horizontal-position repeatability ±0.25mm
  • Tube focus LargeË–1.1mm×1.0mm SmallË–0.5mm×1.0mm
  • Maximum continuous scan duration 120s
  • Nominal reconstruction slice thickness 0.625mmˈ1.25mmˈ2.5mmˈ5.0mmˈ 7.5mmˈ10mm
  • Range of pitch 0.5~1.5
  • Shortest 360 degree rotation time 0.5s
  • Max. length of TOPO 180cm
  • Maximum vertical-movable range 500mm
  • Maximum continuous scan length 180cm
  • Monitor 24’’ LCD Monitor
  • Maximum speed of horizontal movement 150mm/s
  • CPU 3.5GHz
  • Resolution of monitor 1920×1200
  • mage-data external storage type CD/DVD/USB
  • Time of image reconstruction(512×512) 15.4ms/frame
  • Digital tilt capability ±50°
  • Allowed rotation times 0.5sˈ0.8sˈ1.0sˈ1.5sˈ2.0s
  • Maximum slice thickness of scan 10mm
  • Speed of image reconstructionË„512×512 65 frames/s
  • Memory 16GB×4
  • Image reconstruction matrix 512×512ˈ1024×1024

Technical Specification
  Precision treatment is a kind of medical technology based on the genetic level the accuracy of disease diagnosis, treatment and prevention, which is a widely industrail recognized direction of medical development Medical imaging can provide precision medical information for diagnosis, under this background, Analytical innovatively launched precision CT platform. Via the breakthrough design of precise hardware, precise technology and precise image,3016 HD can realize the precise imaging and tissues to human body, as well as precise localization and qualitative diagnosis of small lesions.

Features

•OptiWave detector

•High precision gantry control

•Dual-mode gantry tilt

•High-definition imaging of targeted organs

•Low dose platform

•3D inhanced VR

•Numbers of detector rows 32

•Width of Z-axle detector 20mm








Additional Information
