DAC Column

100-1000kg DAC Column, Certification : ISO 9001 : 2015

Listing ID #3427369

12 Lakh / piece
Get Latest Price
  • MOQ 1 Unit
  • Brand NameAnalytical Technologies Limited
  • ConditionNew, Used
  • CertificationISO 9001 : 2015
  • TypeChromatography Equipment
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

Analytical Technologies Limited verified-icon
Vasna Road, Vadodara, Gujarat
View Number
  • Member Since 10 Years
  • Nature of Business Retailer
  • GST No. 24AAGCA4017N1ZQ

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Brand Name Analytical Technologies Limited
  • Condition New, Used
  • Certification ISO 9001 : 2015
  • Type Chromatography Equipment
  • Weight 100-1000kg
  • Country of Origin India
  • Column tube material 316L
  • High pressure seal Material: PTFE+316L
  • Dimensions 500mm×500mm×1900mm
  • Design pressure 10Mpa
  • Total column length 500mm
  • Max. bed height 300mm
  • Inner diameter 5 50mm
  • Air inlet diameter Ɍ8
  • Inlet diameter 1/16”
  • Filter Material: 316L Pore size: 3~5ʅm
  • Roughness Inner surface Raч0.4ʅm, outer surface Ra<1.6ʅm
  • Air source ш6bar, outputш0.5m3 /min
  • Outlet diameter 1/16”
  • Column bracket material 304

Technical Specification

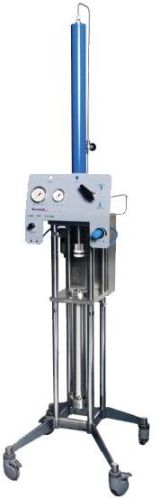

  The DAC (dynamic axial compression) column adopts latest design by ATL. The piston of column always produce a stable pressure on packing bed which can effectively prevent the collapse and loose of the column bed.

Features Short length, Large inner diameter, Pancake shaped. It is far shorter than the open column which length is always more than 1m. Besides, its inner diameter is 10mm to 1000mm.The separation cycle of the pure material will be shorter and the yield will be higher.




Additional Information

  • Payment Terms L/C, D/A, D/PT/T
  • Port of Dispatch Analytical House E67/68, Vasna Rd, Ravi Park Society, Saiyed Vasna, Vadodara, Gujarat 390015
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Analytical Technologies Limited,India is a leading manufacturer, supplier and exporter of Analytical, Chromatography, Spectroscopy, Biotechnology, Biomedical, Clinical Diagnostics and Material Science & General Laboratory Instrumentation. Main products includes Labs setups on turnkey basis, HPLC, GC, GPC, IC, HSCCC, PREP HPLC, Spectrophotometers, LCMS, GCMS, ICPMS , ICPOES, FTIR, Amino Acid Analysers,TOCs, Particle Size Analysers, Particle Counters,AAS, Polarimeter, OES, WPS, DSC TGA,. XRD / XRF , MRI , CT, Hematology, biochemistry, hba1c analysers , PCR RTPCR , micro plate elisa readers washers,etc,.For more details click on the bellow.
  • Nature of Business Manufacturer / Exporter / Service Provider / Supplier / Retailer
  • Number of Employees 100 - 150
  • Year of Establishment 1972
