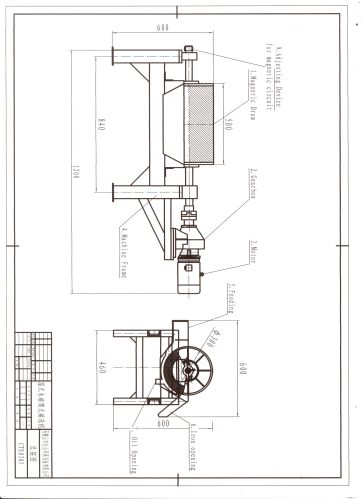

CTB Wet Drum Magnetic Separator

Model Drum Spece
(mm) Magnetic induction intensity of drum surface（mT） Feed
density（%） Working Space
(mm) Feed Size (mm) Handling Capacity Power (kw) External
Dimension
(mm) Overall
weight (kg)
Ferrite Rear Earth CTS CTN CTB Dry Ore
（t/h） Ore
Pulp (m³/h)
Mean Enha
ncing
CTB0606 600×600 150 160 220 20-30 30-50 6-0 3-0 1-0 6-8 20-25 1.5 2000×1300×1250 900
CTB0609 600×900 150 160 220 20-30 30-50 6-0 3-0 1-0 10-12 32-40 1.5 2300×1300×1250 1100
CTB0612 600×1200 150 160 220 20-30 30-50 6-0 3-0 1-0 13-17 40-55 1.5 2600×1300×1250 1200
CTB0615 600×1500 150 160 220 20-30 30-50 6-0 3-0 1-0 15-20 50-65 2.2 2900×1300×1250 1400
CTB0618 600×1800 150 160 220 20-30 30-50 6-0 3-0 1-0 20-25 65-80 2.2 3200×1300×1250 1500
CTB7512 750×1200 160 170 240 20-30 35-55 6-0 3-0 1-0 23-30 65-100 1.5 2600×1100×1500 2000
CTB7515 750×1500 160 170 240 20-30 35-55 6-0 3-0 1-0 30-40 90-130 2.2 2900×1100×1500 2200
CTB7518 750×1800 160 170 240 20-30 35-55 6-0 3-0 1-0 35-50 110-160 3 3200×1100×1500 2450
CTB7521 750×2100 160 170 240 20-30 35-55 6-0 3-0 1-0 38-55 120-170 3 3500×1100×1500 2900
CTB7524 750×2400 160 170 240 20-30 35-55 6-0 3-0 1-0 42-60 130-180 4 3800×1100×1500 3390
CTB0915 900×1500 ≥170 ≥180 ≥300 25-35 40-60 6-0 3-0 1-0 35-65 100-150 3 2900×1500×1680 3400
CTB0918 900×1800 ≥170 ≥180 ≥300 25-35 40-60 6-0 3-0 1-0 45-80 120-180 3 3200×1500×1680 3800
CTB0921 900×2100 ≥170 ≥180 ≥300 25-35 40-60 6-0 3-0 1-0 50-90 140-200 4 3500×1500×1680 4200
CTB0924 900×2400 ≥170 ≥180 ≥300 25-35 40-60 6-0 3-0 1-0 55-100 160-230 4 3800×1500×1680 4600
CTB1015 1050×1500 ≥180 ≥190 ≥300 25-35 45-65 6-0 3-0 1-0 40-75 115-170 3 3150×1650×1750 3640
CTB1018 1050×1800 ≥180 ≥190 ≥300 25-35 45-65 6-0 3-0 1-0 50-90 140-205 4 3450×1650×1750 4100
CTB1021 1050×2100 ≥180 ≥190 ≥300 25-35 45-65 6-0 3-0 1-0 55-105 160-240 4 3750×1650×1750 4550
CTB1024 1050×2400 ≥180 ≥190 ≥300 25-35 45-65 6-0 3-0 1-0 65-120 185-270 5.5 4050×1650×1750 5070
CTB1030 1050×3000 ≥180 ≥190 ≥300 25-35 45-65 6-0 3-0 1-0 80-150 230-340 5.5 4650×1650×1750 6560
CTB1230 1200×3000 ≥180 ≥190 ≥300 25-35 45-65 6-0 3-0 1-0 88-165 250-370 7.5 4800×1900×1980 7500
