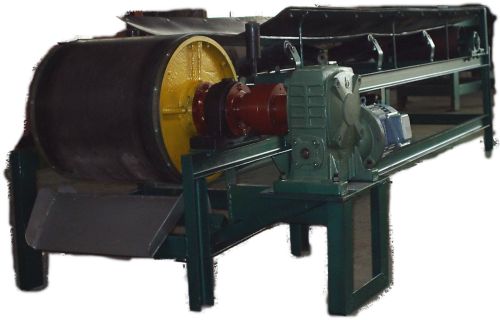

CTDG Dry Drum Magnetic Separator

Specifications & Models CTDG
1515N CTDG
1214N CTDG
1210N CTDG
1010N CTDG
0812N CTDG
0810N CTDG
0808N CTDG
0606N CTDG
0505N CTDG
0405N
Technical performance
Drumdiameter(mm) 1500 1250 1250 1000 800 800 800 630 500 460
×Drum length(mm) ×1800 ×1600 ×1150 ×1150 ×1400 ×1150 ×950 750 ×550 x520
Conveying
belt width(mm) 1600 1400 1000 1000 1200 1000 800 650 500 500
Conveying belt
speed (m/s) 1.6-2.5 1.6-2.5 1.6-2.5 1.6-2.5 1.6-2.5 1.6-2.5 1.0-2.5 1.0-2.0 1.0-2.0 1.0-2.0
Magnetic Intensity on
drum surface In
separation zone(mT) ≥3000 ≥3000 ≥3000 ≥3000 ≥3000 ≥3000 ≥3000 ≥3000 ≥3000 ≥3000
Ore diameter
upper limit (mm) 350 350 350 250 200 200 200 70 50 40
Capacity(t/h ) 600-800 500 300-350 300 400 250 200 80 50 40
Drum Weight(t) 6 5.5 3.7 2.8 2 1.6 1.2 1 0.35 0..3
