Introduction:

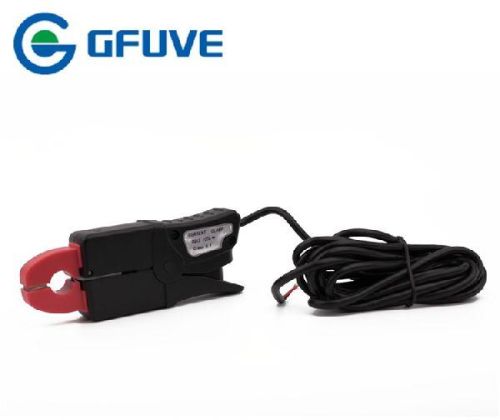

the model xq13 handheld clamp on current transducer is suitable for 10a-100a cable online measurement, it belongs to high performance transducer field.
features
1.suitable for 10a-100a cable online measurement.
2.holding wire diameter: Ï13mm
3.dimension: 52.5mmÃ136.5mmÃ28mm
4.load capacity: â¤4Ï
5.installation: clamp type
6.output mode: lead output
parameters
electrical parameters
ratio 1000: 1 or 2000:1 (customized)
accuracy class 0.1%, 0.2%
primary current 0 - 100a ac
secondary current 0 - 100ma ac (customized)
max. Cont. Input current 120a
over voltage category cat iii 600v
output signal 100ma ac at nominal input current
frequency range 40hz-2000hz
dielectric strength 3kv 50hz60hz at 1 minute
temperature range -20°c to +55°c
output 2.5 meter cable with d01 connector max. Voltage not insulated conductors 600 v
standard en 61010-1, en 61010-2-032
installation clamp type
output mode lead output(2.5m)
mechanical parameters
dimensions (l x w x h) (mm) 48 x 179 x 27
weight (g) 280
holding wire diameter (mm) 13
max. Jaw opening (mm) 13
