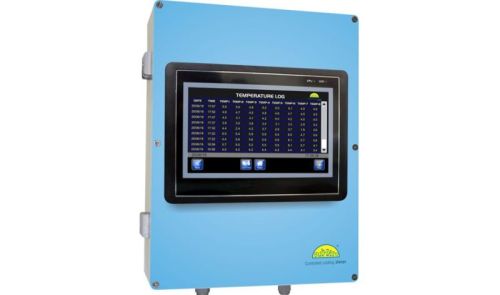

Sub-zero Datalogger, Size : Resolution (WXH) 800 X 480

₹ 16,000 - ₹ 30,000 / Piece

Brand NameSub-zero
FeatureVoltage Monitoring. Phase Sequence Monitoring. Phase Loss And Phase Unbalance Detection. UV And O
SizeResolution (WXH) 800 X 480
Country of OriginIndia
Supply TypeSupplier, Distributor
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

Brand NameSub-zero
SizeResolution (WXH) 800 X 480
FeatureVoltage Monitoring. Phase Sequence Monitoring. Phase Loss And Phase Unbalance Detection. UV And O
Country of OriginIndia
FinishingPolished
ShapeRectengular
Touch Panel4 wires resistive touch screen (Surface Hardness 4H)

Display	7" TFT LCD, full view
Resolution (WXH)	800 X 480
Colors	24-bit Colors
Brightness	360cd/m2
Backlight	LED
Backlight Life	50000 hours
Touch Panel	4 wires resistive touch screen (Surface Hardness 4H)
CPU	600 MHz ARM Cortex-A8
Memory	128MB Flash + 128MB DDR3
RTC	Built In
Ethernet	NA
SD Card	NA
USB Port	1USB Host 2.0, 1 USB Device 2.0
COM Port	COM1: RS232/RS485/RS422 COM3: RS232
Power Consumption	< 10W
Input Power	DC 24V, Input Range: DC 9V - 12V
Power Protection	Protected from thunderstrike and surging
Power Down Allowed	< 5mS
Operating Temperature	"-40.0 to 90.0°C"
Storage Temperature	"-30 to 80°C"
Operating Humidity	10-90% RH (No Condensation)
Vibration Endurance	10-25Hz (X/Y/Z 2G/30Min)
Cooling	Natural air cooling
Degree of Protection	Front IP54, Back IP20
Shell Material	ABS
Panel Cutout (WXH)	Wall Mount
Dimension	250mm X 300mm X 110mm
Weight	About 1100g
Datalogging	YES
Printer Connectivity	YES
Sensor Type	NTC(16 Nos)
Relay Output
BMS Connectivity	YES
