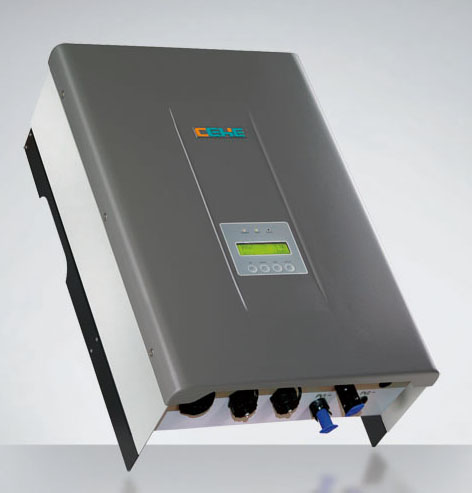

DC AC Solar Pump Inverter, Brand Name : CEHE

We are offering dc ac solar pump inverter.product features
drive power is matched with three phase ac pump
adopt advanced igbt power module
high conversion efficiency,low temperature rise,low noise,long lifespan
advanced mppt technology, efficiency is more than 99%
fully automatic operation, it can store operation date for 10 years
perfect system protection, high reliability
new design of anodized aluminum case
interface:rs485wifi
modular design,easy to install,operate,maintain

technical parameters for pv pump inverter ehe-p2k2l
max. Input dc voltage 450vdc
recommended mppt voltage 150-400vdc
max. Input dc current 4.61a
max. Mptt efficiency 99%
number of strings 2
max. Applicable motor output power 2.2kw
rated output voltage 220-24vac 3 phase
output frequency range 0-5060hz
rated output current 11a
dimension(whd) 330x450x152 mm
weight 12.5kg
max. Efficiency 97%
protective class I protection degree ip65
environment temperature -25℃-+60℃ above 60℃ need derate operation
cooling method natural cooling
display lcd
communication interface rs485wifi
altitude 3000m; above 3000m need derate operating
noise emission ＜50db
compliance en 50178; iecen 62109-1; iec61800
application of pv inverter:
pump water from deep well
village and town water supply
appartment,hotel and hospital sewage treatment
aeration machine,cooling tower and other industrial usage
solar power staion cleaning
pumping for irrigation
