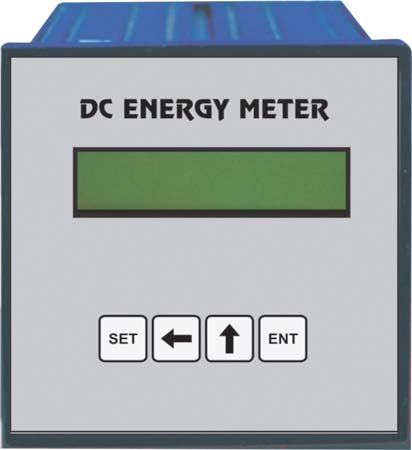

DC Energy Meter

The dc Energy Meter provided By Us is Used for Measuring Electrical Energy Consumed By Multiple Loads that are Connected to D.c. Voltage Source. Furthermore, the Dc Energy Meter is Ideal for Measuring the Drop of Voltage Across Current Shunt, Input Voltage and Observing Current, Voltage, Kw & Kwh with the Usage of Push Button Switches.
features
7 Digit Lcd Display of Kwhuser Selectable Shunt Ratingreset of Kwh for Every Channel Protected By Passwordindividual Channel Can Be Enabled or Disabledshunt Can Be Placed Either in +ve or -ve Side of the Dc Power Sourceenergy Values & Settings Retained After Power Failureremote Monitoring of Parametersdisplay of Dc Current, Voltage, Power (kw) & Kwhr for 7 Channelssoft Calibration – No Trimpotsoptional Real Time Clockoperates from Battery Being Monitored (optionally It Can Be Operated from a Different Auxiliary Power Supply)optional- Rs 485 Modbus Link for Pc Connectivitydata On Modbus Protocol Can Be in “integer” Format or Ieee 754user Friendly Lcd Display Messages
technical Specifications
electrical input Voltage : nominal Voltage Range12v (10 to 19v), 24v (20 to 38v)48v (40 to 76v), 96v (80 to 152v)110v (90 To175v), 220v (180 to 350v)input Current : nominal Shunt Value 75mv (50 to 100)operating Range 5mv to 100mvauxiliary Supply : same as Input Voltage or Optionally Any Voltage Noted in the Voltage Range Abovemeasurement : 7 Channel Dc Kwhraccuracy : +/- 1% (10 % to 120 % of Range)resolution : 0.1 Kwhrindication display : 16 X 2 Character Backlit Lcd Character Size 2.95 X 4.35mmdisplay Parameter (four Channels)kwhr -xxxxxx.xcurrent- Xxx.xpower ( Kw) -xx.xvoltage -xx.xconfigurable Parametersshunt Rating- 75 Mv = 10 to 1000 Ampbaud Rate -9600 to 19200device/ Unit Address -01 to 255calibration for Each Channel and Reset of Energy Count Provided with Password Protectionprotection : Reverse Input Polarity Protectionisolation between Aux-supply and Electronics: 500 V Dc for 1minbetween Current (shunt) and Input Dc Potential: 500 V C for 1 Mincommunication rs 485 2 Wire Communicationprotocol Modbus Rtu Integer, or Ieee 754baud Rate : Settable Either 9600 or 19200address : Settable 01 to 255data Retention: Energy Values and Settings Retained After Power Failurecalibration: Soft Calibration Through Softwarereal Time Clock (rtc) : Optionalpower Consumption : < 2 Wattsecurity password for Editing of Settingspassword for Calibrationenvironmental normal Operating Conditions. Temperature: Operating Temperature: 10 C to 55 C relative Humidity: 55% to 85%.dimensions housing : Plastic or Metal Housing 96 X 96 X 65 Mm (cut Out 92 X 92 Mm)
