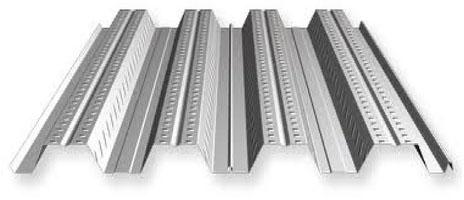

Deck Sheet

₹ 60 - ₹ 85 / kilogram

MOQ100 Square Meter
FeatureWater Proof,Corrosion Resistant
TechniqueCold Rolled
Surface TreatmentGalvanised
DimensionsUp to 122 meter
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Allowable Load(kg/m2):Yield Stress of Material=3400kg/cm2 Greater Durability: - Deck Steel base has superior corrosion protection with guaranteed minimum yield strength depending on the....

Company Information

4.4/5

Member Since 15 Years
Nature of Business Manufacturer
GST No. 24AKAPR2147M1Z2

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Allowable Load(kg/m2):Yield Stress of Material=3400kg/cm2

Greater Durability: - Deck Steel base has superior corrosion protection with guaranteed minimum yield strength depending on the specification used.
Unbeatable strength: - when the steel and concrete composite slabs are constructed, they are lighter and stronger than most conventional slabs. Steel Decking provides flexible reinforcement, combined with the compressive strength of the concrete, for an all-round stronger slab. The steel decking profiles are designed to inhibit any longitudinal slip between the steel and concrete in the slab itself, and any transverse movement between the slab and the supporting beams.
Easy on-site handling: - Steel decking is transported to site in pre-cut lengths, and in pre-packaged bundles. These bundles can be easily craned into specific work areas, and the individual sheets quickly laid by hand.
Speedy, safe construction: - One advantage of metal deck steel floorings its speedy erection

PHYSICAL PROPERTIES

T (mm)	Area (mm2)	Weight(kg/m2)	1xx (cm4)	Zxx (cm3)
0.6	6.37	6.6	25.63	10.05
0.63	6.69	6.9	26.91	10.55
0.8	8.5	8.8	34.18	13.4
1	10.62	11	42.72	16.75
1.2	12.98	12.7	50.59	19.84
1.25	13.28	13.7	53.4	20.94

Load Chart For Steel Deck Profile

T(mm)	Span(m)
-	1	1.2	1.4	1.5	1.6	1.75	2	2.5	3	3.5	4
0.6	2675	1845	1355	1181	1038	867	664	425	270	170	114
0.63	2790	1937	1423	1240	1090	911	697	446	283	179	120
0.8	3542	2460	1807	1574	1384	1157	886	567	360	227	152
1	4428	3075	2259	1968	1730	1446	1107	708	450	283	190
1.2	5320	3701	2705	2355	2072	1715	1310	825	525	321	221
1.25	5535	3844	2860	2460	2162	1807	1384	886	562	354	237
