Manual/automated Polished Cast Iron Diaphragm Valves

Name: Diaphragm Valves
Brand: QTC
SKU: EI-6966614
Price: 1000 INR
Availability: InStock
Rating: 4.3 (8 reviews)

Price:

1,000 / piece Get Latest Price

Sold By : Quantum Tech Co.

Send Inquiry

Product Specifications

MaterialCAST IRON
FinishingPolished
Automatic GradeMANUAL/AUTOMATED
Mounting TypeHorizontal
Valve Size15MM TO 300MM
Size Range15mm To 300mm
Working Pressure10 KG/CM2
Specialities12 TO 18 MONTHS WARRENTY
Weight5Kg
Brand NameQTC
CertificationISO 9001:2008 Certified
Packaging TypeGUNNY BAG PACKING
ColorDARK GREEN/BLUE
ConditionNew
Actuation TypePNEUMATIC/ELECTRIC
UsageWATER/OIL/GAS
TypeDiaphragm Valve
Size15 MM TO 300 MM
Country of OriginIndia
Model NoQT 260
Warranty12 TO 18 MONTHS
MediaWATER/OIL/GAS
Number Of Way2way
End ConnectionFlanged Ends and Butt Weld,FLANGE END
Inspection & TestingBS-6755 PART-I
Material of ConstructionCast Iron /WCB/WC5/WC6/WC9/ CF8/CF8M/CF3 / CF3M4A/5A & other special exotic Alloy
Manufacturing Standard:BS-5156
Pressure RatingASA 150#/PN 10/PN 16
Supply TypeManufacturer, Exporter, Supplier, Trader

Preferred Buyer From : All over the world

Product Overview

“QTC BRAND “ DIAPHRAGM VALVE CAST IRON - DIAPHRAGM VALVE FLANGED END ASA 150#

BODY : CAST IRON - IS 210 Gr FG 200/220 AND LINED WITH EBONITE

BONNET : CAST IRON

ENDS : FLANGED TO ANSI B 16.5 (150#)

PARTS : ALL WETTED PARTS OF VALVE & RAISED PORTION OF FLANGES WILL BE LINED WITH RUBBER LINNING

LINING THIKNESS: MINIMUM 3.00 MM

HYD-TEST PRESS. : BODY : 20 Kg/Cm2

: SEAT : 15 Kg/Cm2

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

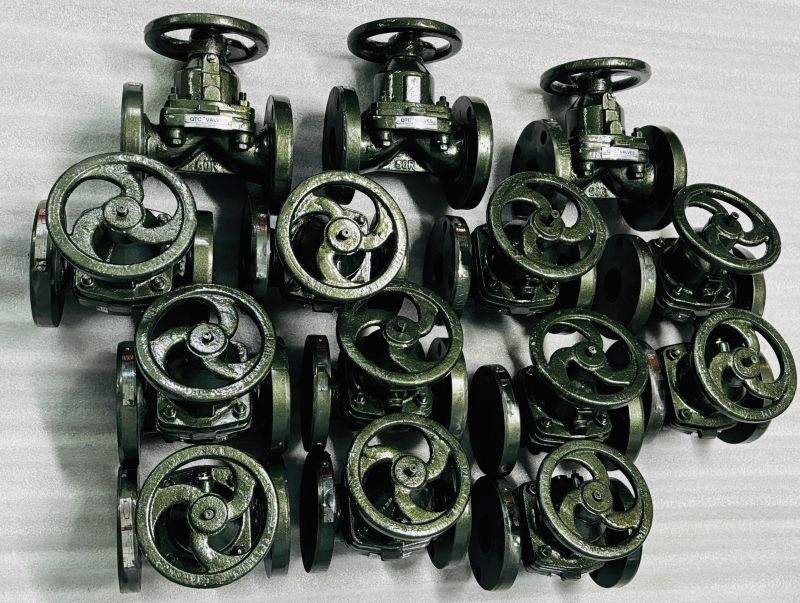

Product Images
