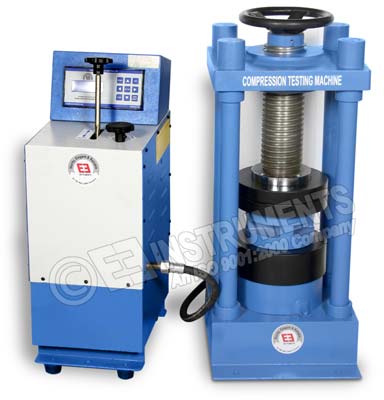

Digital Compression Testing Machine, Brand Name : EIE

We are offering Compliance with following Intaernational Standards IS : 14858 - 2000 Introduction The digital compression testing machine has been designed to meet the need for a simple, economic and reliable means to test concrete for its compressive strength. The design expressive of simplicity, both of construction and operation, makes the machine easy to use and maintain. The digital machines are provided with a MANUAL pace rate controller, to enable maintain a constant rate of loading. The Complete unit comprises a Loading Unit which is of four pillar model construction, having a cross-head with a spherical seated platen. The lower platen is attached to the top of the piston. The Loading capacity is of 1500 KN, Cubes up to 200 mm & Cylinders up to 150 mm Diameter x 300 mm Height can be tested using the appropriate spacers. The pump facilitates rapid approach of the platens for daylight closure and also provides comprehensive control over the application of load. A control valve provides fine control over the loading rate for accurate pacing. Maximum load is held and retained for approximately 15 minutes, unless cancelled, using the panel mounted reset switch. Salient Features of EIE - Digital CTM Machine · 4 line Alphanumeric display with backlit, displaying - Actual Load, Peak load, Rate of loading and Calculated load in Nmm² · Direct reading of compressive strength in Nmm2 - No calculation required · Peak hold facility · Can manually control pace rate from 1 KNSec to 9 KNsec
