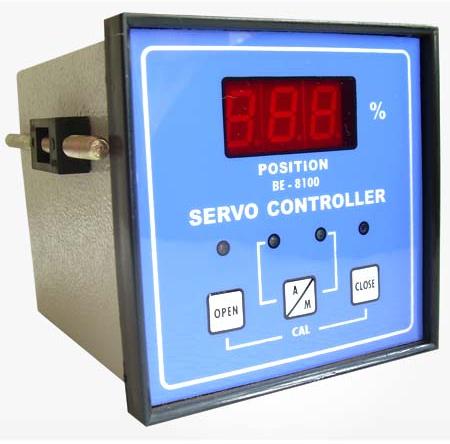

Digital Position Controller

Digital Position Controller is manufactured by us and available at highly affordable prices. Digital Position Controller is high on demand in the market due to their guaranteed performance. We provide assorted range of Digital Position Controller to the clients as per their specifications. Additionally, we also give the timely delivery of Digital Position Controller in the well stipulated time frame. Size Available :

• 96 × 96 × 100 mm

Range :

• 0-100 %

Specifications :

• Control I/P : 4-20 mA, 0-1VDC, 0-10VDC
• Feed back I/P : Resistance Feed back, 4-20 mA , 0-1VDC, 0-10VDC
• Control O/P : Supply to the motor for forward and reverse
• Motion or potential free contacts
• Keys Provided : Auto / Man selection, Open and Close
• Auto mode : Controls valve / Damper operation according to the control I/P given
• Manual mode : Valve / Damper can be operated using front panel Open and Close keys.
• Feed back out put : 4-20 mA, 0-1VDC or 0-10VDC for 0 to 100% travel.
• Supply voltage : 24 VAC, 110 VAC, and 230 VAC as required.
• Temperature : 0 to +50º C
• Humidity : 0 to 90% RH (Non -Condensing).
