Discrete Components Board (Components Testing) SE-722

Product Category :  Electronics Components Display Boards (Series : 700)
Product Name : Discrete Components Board (Components Testing Board)
Model No. :  SE-722
Product Details

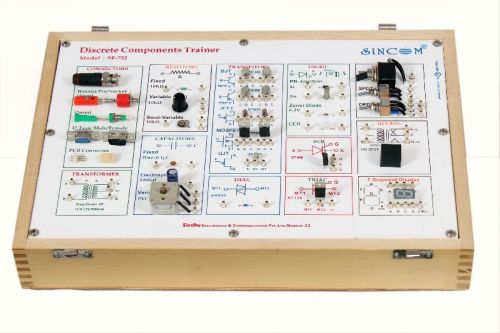

• This is High Quality Poly coated wooden box with printed multicolor diagram includes assorted Electronics components on white acrylic sheet. This is Discrete Electronics Components Display-cum-Testing Board equipped with different types of basic electronics Components with their symbols and testing  techniques. On-Board various types of components for displays and testing are Resistors-Fixed-Variable-Semi Variable, Capacitors-Fixed Disc- Electrolytic-Gang, Diodes-PN Junction Si/Ge - Zener Diode-LED, Transistors-BJT NPN/PNP- JFET-MOSFET-UJT, SCR-DIAC-TRIAC, Switches-SPST/SPDT/DPDT, Relays 12V SPDT, Seven Segment Display, Transformer-Step Down center tap and Connectors- BNC Pin/Socket-Banana 4mm/2mm- D type male/female-PCB Connectors.

• Objectives :

  • To Study Symbols of various types of Basic Electronics Components.
  • To Observe the types of various Electronics Components like Resistors, Capacitors, Diodes, Transistors, SCR,DIAC,TRIAC, Switches, Relays, Display, Transformer and connectors.
  • To study the Testing techniques of all these Electronics Components using Analog/Digital multimeter.

• Accessories Included : Analog Multimeter (1No), Digital Multimeter (1No), set of Patch cords and Instruction manual.
