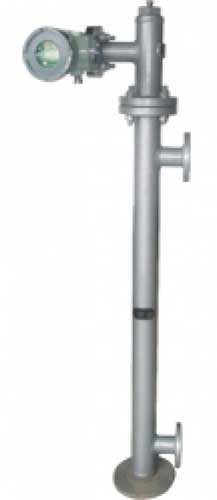

Metal Displacement Liquid Level Transmitter

Automat displacement type Level Transmitter is designed to sense Liquid level, Interface and Specific Gravity. The output of the Instrument is proportional and is designed to measure and transmit electrical signal proportional to changes in Liquid level or Specific Gravity.

Description
The Displacement Liquid Level Transmitter changes in Liquid Level, Specific Gravity or Interface Level and transmits a current output signal proportional to the change in the process parameter. The change in the process parameter causes a change in the displacer position, which is transferred to the Torque Tube producing a rotary motion. This rotary motion is transferred through bellow to lever assembly that is supported by flexure strips. Magnets attached to the lever assembly move past a Hall effect position sensor that converts the magnetic field signal to an electrical 4- 20mAsignal.

Brand Name

• V. Automat series 401ES

Features

• Robust construction
• Highly efficient
• Durable
• High performance
• Low maintenance
