Signal output : 4~20mA/HART 24V DC 2-wire /4-wire system; 4~20mA/HART 220V AC 4-wire system; RS485/Modbus
Frequency : 80GHz
Application : Measurement of liquid level various liquids (such as hydrochloric acid, nitric acid, sulfuric acid, lye, etc.) storage tanks in chemical industry, smelting, food processing and other industries.
Specification: 2-wire compact transmitter 0.1 mm or 1 mm resolution Supply voltage 12.5 to 36 VDC Measuring range : up to 15 m Output: 4 to 20 mA, HART Process Temp: - 40 to 90 Deg C Approvals: ATEX, IEC Ex, OIML R 85 Plug-in graphic display module Distance,...

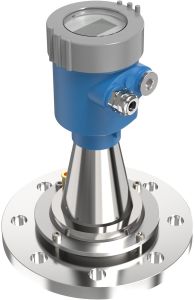

Specification: 2-wire 80 GHz (W-band) radar Measuring range up to 30 m Accuracy of ±2 mm Supply voltage 12 to 36 VDC Output: 4 to 20 mA, HART Process Connection: 1", 1½" BSP / NPT Process Temperature up to 80 Deg C Easy to install due to small antenna diameter Plug-in...
Accuracy : ±0.1% Of Max Range (lab), ±0.25% Of Max Range (field)
Features : Self-adjusting Tracking Radar Technology, Simple Push-button Calibration, 4–20 MA / 20–4 MA Output, Diagnostics And Data Logging Software, PLC Compatible, Two-wire Or Four-wire Operation, Fully Programmable, Suitable For Liquids, Solids, Tanks, Silos,
Temperature Limits : PP Rod: -40 To +190°F, PTFE Rod: -40 To +350°F
