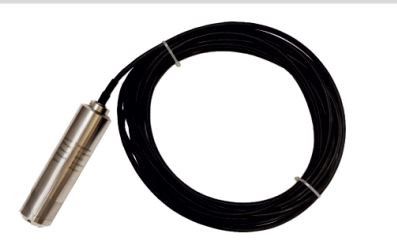

HLT-22 Hydrostatic Level TransmitterFeatures
Piezo resistive sensor
Measuring range up to 500 meters
Pressure range from 0.4 to 50 bar
Ingress protection IP68
Overload-resistant construction
4–20 mA two-wire output
Reliable and cost-effective operation
Simultaneous level and temperature measurement (optional PT100 sensor)
Suspension clamp and cable gland (optional)
Compact, durable, and maintenance-free design
Description
Electronet HLT-22 series level transmitters are designed for fast, easy, and trouble-free installation. These transmitters provide a stable 4–20 mA output proportional to the liquid level, operating on a 24 VDC power supply. All wetted parts are made from stainless steel, ensuring long-term durability.
The transmitter is suitable for wastewater, sludge, saltwater, and general industrial applications. Specialized non-metallic versions are also available for corrosive media.
Technical SpecificationsSensor & Measurement
Sensor Type: Piezo resistive
Maximum Measuring Range: 0 to 500 meters
Pressure Range: 0.4 to 50 bar
Output Signal: 4–20 mA DC, 2-wire
Output Load: 600 ohms
Accuracy: ±0.25% F.S.
Overpressure Safety: 1.5 × maximum pressure
Burst Pressure: 2 × maximum pressure
Response Time:
