Magnetostrictive Level Transmitter Manufacturer in Ankleshwar Gujarat India

Magnetostrictive Level Transmitter, Brand Name : Fitzer

Name: Magnetostrictive Level Transmitter
Brand: FITZER
SKU: EI-8445649
Price: 250000 INR
Availability: InStock
Rating: 4.5 (22 reviews)

Price:

2.50 Lakh / Piece Get Latest Price

Sold By : Fitzer Incorporation

Send Inquiry

Product Specifications

Brand NameFITZER
Country of OriginIndia
Protection level:IP65
Output ripple≤20MV
Electronic compartment shell1Cr18Ni9Ti or aluminum explosion-proof shell.
Maximum range0.3m~18.1m
Pressure limit2000psi
Display typeLCD display/without display
Operating temperature-40℃-320℃
Lead methoda. Shielded cable connection, b. Aviation plug connection c.Terminal connection
DiagnosisOnline diagnosis via HART protocol or AMS protocol,
Polarity protectionDiodes are connected in series in the loop
Temperature output0-8 temperature point output (optional)
Power supply24V±2.4VDC/220V
TypeMagnetostrictive Level Transmitters
load capacity4~20mA output: load capacity ≤500Ω; 0~5V output; controller load ≥5KΩ
Product power consumption≤50mA
Output form4~20mA, 0~5V, HART, RS-485
Output temperature drift50ppm/℃
Material0Cr18Ni9Ti, 1Cr18Ni9Ti, PTFE lined
Applicable mediaSuitable for level measurement of clean liquids such as water, oil, ethanol, etc.
WarrantyOne Year
Explosion-proof certificationExdIIBT5, ExiaIIBT5, ExdIICT5
linear errorBetter than ±0.02%FS;
Supply TypeManufacturer, Exporter

Preferred Buyer From : All over the world

Product Overview

FITZER make Magnetostrictive Level Transmitter
The FITZER Magnetostrictive Level Transmitter is an advanced and highly reliable instrument designed for continuous and precise measurement of liquid level as well as interface level.

It offers a wide measuring range of 0.2 m to 23 m, with selectable accuracy options of ±1 mm, ±5 mm, ±1 cm, ±2 cm, and ±5 mm, ensuring suitability across various industrial applications.

FITZER make Magnetostrictive Level transmitters are engineered to provide two independent outputs:

Interface Level
Overall Liquid Level

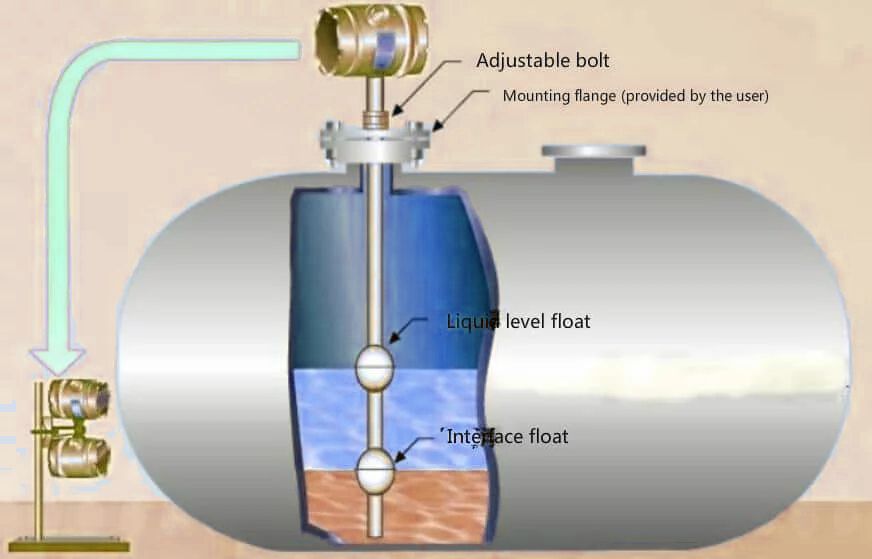

This dual-output capability allows for accurate interface measurement even when the specific gravity difference is as low as 0.02.

The FITZER Magnetostrictive Level Transmitter is widely used for:

Oil–water interface measurement
Acid storage tanks
Propane vessels
Desalters
Sewage and wastewater tanks
Various other industrial liquid-level applications

With robust construction, high repeatability, and superior accuracy, FITZER ensures dependable performance even in demanding process environments.

Features – FITZER Magnetostrictive Level Transmitter

Designed with advanced measurement principles and multifunctional capability, suitable for clean liquid level applications such as water, oil, ethanol, and similar media.
Offers high precision, excellent stability, superior reliability, and high resolution for demanding industrial environments.
Non-contact measurement ensures extended service life and long-term operational dependability.
Low power consumption with a high performance-to-cost ratio.
Available in explosion-proof or intrinsically safe configurations for enhanced operational safety.
Multiple output options including 4–20 mA (two-wire), 0–5 V, HART, and RS-485, enabling seamless integration with various control systems.
Compact and robust design with strong environmental adaptability; anti-fouling, dust-proof, and waterproof (IP65 rated).
Simple installation, easy commissioning, and convenient maintenance.
No need for routine recalibration or frequent maintenance, ensuring long-term accuracy.
Wide power supply adaptability with strong anti-interference capability.
Supports real-time measurement of both overall liquid level and interface level.
Equipped with reverse polarity protection for enhanced operational safety.
Built-in protection against lightning surges and radio frequency interference.

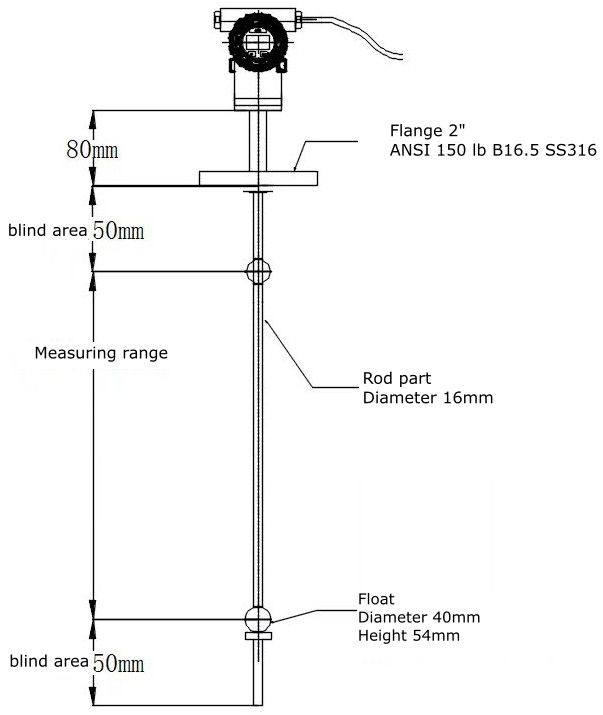

Structure of the FITZER Magnetostrictive Level Transmitter

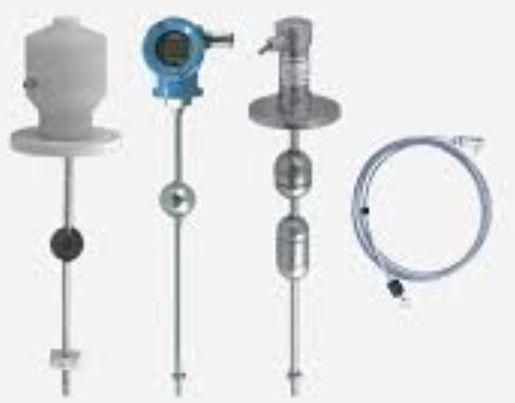

The FITZER Magnetostrictive Level Transmitter is available in three primary configurations to suit diverse industrial applications:

Flexible Probe Rod Type
Rigid (Hard) Probe Rod Type
External Float Isolation Detection Series

1. Sensing Part (Probe)2. Electronic Part (Transmitter)

Additional Information

Payment Terms T/T
Port of DispatchMumbai & Gujarat
Packaging DetailsWOODEN OR CORRUGATED
Delivery Time4-5 Weeks
