Dry HCL Gas Package System Manufacturer in Ankleshwar Gujarat India

Dry HCL Gas Package System, Brand Name : Fitzer

Name: Dry HCL Gas Package System
Brand: FITZER
SKU: EI-8439090
Price: 1050000 INR
Availability: InStock
Rating: 4.5 (22 reviews)

Price:

10.50 Lakh / Piece Get Latest Price

Sold By : Fitzer Incorporation

Send Inquiry

Product Specifications

Brand NameFITZER
CertificationISO Certified
ColorDark Red (industrial coating), Other (Usually grey, silver, or epoxy-coated)
TypeDry HCl Gas Package
Warranty1 Year
Country of OriginIndia
Overall Height(HCL package varies per capacity)
Construction MaterialGraphite / PTFE Lined Steel / Alloy / SS316
Thickness6-10mm, 10-14mm 14-18mm, (Depends on shell thickness of vessels in the package)
Working Temperature20°C – 80°C
Is It Eco FriendlyYes
SafetyPressure Relief, Flame Arrestor, Gas Detector
Dimensions (HxWxD)Varies based on plant design
Burst Pressure(Pressure vessels are tested as per standards)
Operating PositionHorizontal/vertical vessels in skid system
Operating PressureAtmospheric to +2 kg/cm²
Mounting Type(Skid-mounted system; not ceiling or trolley-mounted)
MountingSkid Mounted
SpecialitiesEasy To Use, Eco-Friendly, High Pressure, Super Performance, Low Moisture
UsageIndustry, Factory, (Chemical plants, pharma, dyes, etc.)
Cooling MediumWater / Chilled Water
Overall Weight(Skid system weight varies by design)
Drying MediaH₂SO₄ / Dehydrating Agents
Discharge Range(As per HCl gas flow rate)
Design Output5 kg/hr – 500 kg/hr (customizable)
Corrosion ResistanceYes
Working Pressure(HCl gas package systems usually operate at 0 to 2 kg/cm²)
MaterialMild Steel, Carbon Steel, Metal Alloy, Other (for PTFE-lined, FRP, Graphite, etc.)
Fire RatingNA
Filling Tolerance(Used only during HCl cylinder loading—optional)
Moisture Content< 50 ppm
Gas TypeDry HCl Gas
Chemical AgentDry HCl Gas
Gas Purity99–99.8%
ShapeCylindrical, Other (Full skid package = combination of shapes, not purely round)
Supply TypeManufacturer, Exporter

Preferred Buyer From : All over the world

Product Overview

A Dry HCl Gas Package System is a fully engineered unit designed to generate, purify, and supply anhydrous Hydrogen Chloride (HCl) gas for industrial applications.
The system ensures continuous, moisture-free, high-purity dry HCl gas using controlled reaction, absorption, and drying processes.

These package systems are widely used in chemical, pharmaceutical, dyes & intermediates, and specialty chemical industries that require high-purity HCl gas for production, synthesis, and downstream processes.

The system is compact, skid-mounted, safe, and engineered with corrosion-resistant materials to handle HCl efficiently.

Key Features

Continuous supply of dry, moisture-free HCl gas
Skid-mounted compact package system
High purity output (99.5%+ HCl gas)
Leakproof construction using corrosion-resistant materials
Low maintenance and long equipment life
Advanced safety interlocks and gas-tight design
Suitable for integration with reactors and scrubbing systems
Custom capacity options for small, medium & large plants

The unit is designed to produce Dry HCl gas with purity more than 99 % by distillation of hydrochloric acid available commercially.

There are two routes :

One route is a simple distillation where the bottom product is 20-22 % HCl solution, which is an azeotrope.

In the second route which is an azeotropic distillation, the bottom product is 1 % HCl solution and calcium chloride solution is recirculated during this process.

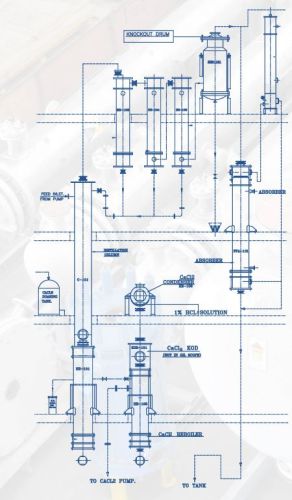

The units consist of distillation column, reboilers, condensers, coolers, graphite pump and knock out drum.

The unit is provided with suitable instrumentation for smooth operation.

The unit can be supplied in skid fashion.

Additional Information

Payment Terms T/T
Port of DispatchMumbai & Gujarat
Packaging DetailsWOODEN
Delivery Time6-8 Weeks

Interested in this product? Ask for more details & Latest Price from seller

Send Inquiry

Company Overview

Manufacturer Of Steam Coil Air Preheaters, Industrial Air Washers, Steam Accumulators, Hydraulic Oil Cooler, Milk Processing Plant, Electronic Drum Level Indicator, Rice Mill Heat Exchanger, Crimped Fin Tube (Spiral Tension Wound Fin Tube), Studded Fin Tube, High Frequency Welded Fin Tube (Continuously Welded Spiral Fin Tube), Low Integral Fin Tube, Extruded Finned Tube, L Fin Tube, Ll Fin Tube, 'G' FIN TUBES / EMBEDDED FIN TUBES, Immersion Water Heater.
