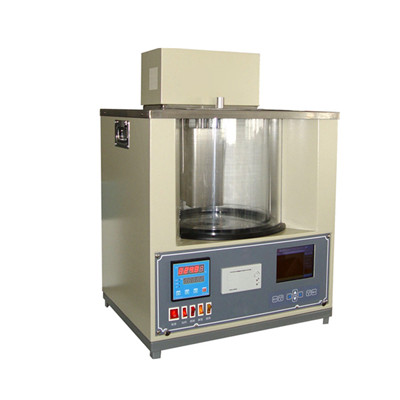

DSHD-265H Kinematic Viscometer

A:Brief description:
DSHD-265H Kinematic Viscometer is designed according the national standard of People's Republic of China GBT265 Test Method for Kinematic Viscosity of Petroleum Products and Calculation Methods for Dynamic Viscosity and the industry standard of People's Republic of China SYT5651 Technical Requirement for Petroleum Products Kinematic Viscosity Tester.
DSHD-265H Kinematic Viscometer is applied to determine kinematic viscosity of petroleum products (Newton liquids) at a constant temperature as per GBT265 and ASTM D445.
B:Main technical specifications and parameters
1.Power supply: AC 220 V±10%, 50 Hz
2.Heating power of water bath: 1700 W
3.Temperature range of water bath: room temperature-100.0 °C
4.Temperature controlling accuracy: ±0.01 °C
5.Cubage of water bath: 20 L
6.iming range: 0.0 s-9999.9 s
7.Timing accuracy: no more than ±0.05% in 60 minutes
8.Sample quantity: four pieces of capillaries are installed at the same time
9.Stirring motor:
(1) Power: 6 W
Rotation speed: 1200 RPM
10.Operation environment:
(1) Ambient temperature: -10 °C-+35 °C
(2) Relative humidity: no more than 85%
11.Temperature sensor: industry platinum resistance, scale number is Pt100
12.Total power consumption: no more than 1800 W
13.Capillary viscometer: 7 pieces in total. Inner diameters are 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, and 2.5mm respectively.
