DSL Bus Bar Current Collector

DSL Bus Bar Current Collector

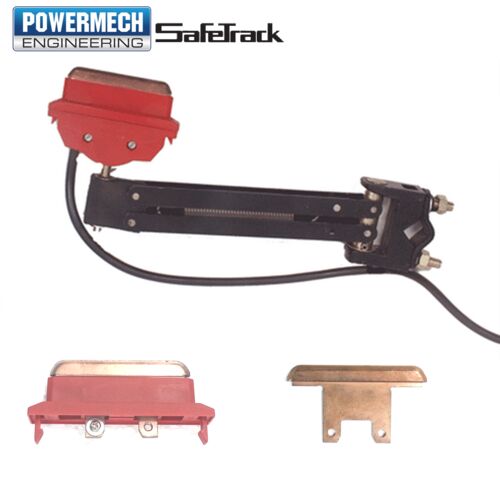

100 Amps / 125 Amps Current Collector Assembly, Model / Type: MACC 125, with 10sq.mm x 1.4meter length cable / 3meter / 5 meter for Safetrack DSL Shrouded bus bar system.

POWERMECH offers Genuine SAFETRACK DSL Current Collector assembly consists of a spring loaded sliding contact type shoe of sintered copper graphite. Heavy duty double arm current collector provides multi axis degree of flexible movement. Exposed parts of current collectors shall be grounded and of corrosion-resistant material. Current collector assembly shall be designed to operate through gaps, splices, switches and shall be self centring.

Copper Shoes (or) Copper Shoe with holder is also supplied as a spare component for SAFETRACK DSL Current Collector assembly.

Advantage of using Shrouded dsl conductor bar over Angle Iron conductor system:

♠ It is insulated
♠ It is finger safe
♠ It is accident free
♠ It is colour coded R Y B G
♠ No protection guard required
♠ It is compact occupies less space
♠ No sparking - spring loaded current collector provide pressurised electrical contact
♠ It is better resistant to atmospheric conditions. For severe conditions S.S. Conductor are available
