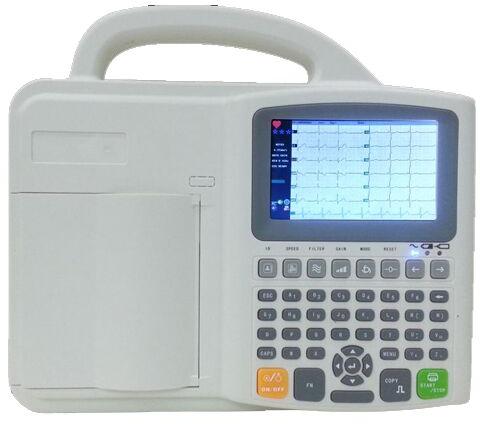

ECG Machine, Driven Type : Electric

Supply TypeSupplier
Preferred Buyer Location All over the world

Salient Features: 3 channel ECG machine with interpretation 5.0" color TFT LCD display Simultaneous 12 leads acquisition and 1, 1+1, 3 channel (Manual/Auto) recording with high resolution thermal printer Manual/Auto working modes Use digital isolation technology and digital signal processing Baseline stabilization inspection Full alphanumeric silicon keyboard Support U disk and SD card storage Support WIFI connection workstation (optional)

View More Details

Company Information

Member Since 12 Years
Nature of Business Manufacturer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Lead	:	Standard 12 leads
Acquisition	:	Simultaneous 12 leads
A/D Converter	:	14bit
Sampling Rate	:	1000Hz

Working Mode

Manual/Auto

Interference Filter	:	AC Filter and EMG Filter
CMMR	:	≥100dB (with AC filter)
Input Circuit	:	Floating, protection circuit against defibrillator effect
Input Circuit Current	:	≤0.1μA
Input Impedance	:	≥50MΩ
Patient Current Leakage	:	＜10μA
Calibrating Voltage	:	1mV±2％
Polarization Voltage Tolerance	:	≥±500mV
Time Constant	:	≥3.2s
Frequency Response	:	0.05 Hz～250Hz
Noise Level	:	＜15μVp-p
Sensitivity Threshold	:	≤20μV
Printer	:	Thermal printer
Paper	:	80mmx20m, roll
Page Speed	:	6.25, 12.5, 25, 50mm/s (±3％)
Sensitivity	:	10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV
Safe Class	:	GB9706.1, Class I, Type CF
