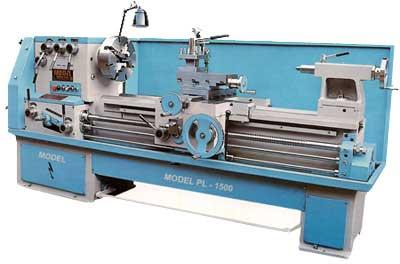

Contact SupplierWe are listed at the apex in the list of the forefront Heavy Duty All Geared Lathe Machine Exporters from India. Various national as well as international clients are placing repeated orders for the All Geared Lathe Machines as no alternative is available in terms of quality and performance. Moreover, our All Geared Center Lathe Machines are loaded with advanced configurations that ensure easy operation and low maintenance cost.
Salient Features :
|
|
MODEL | SGL6 | SGL8 | SGL10 | SGL12 | SGL14 |
---|---|---|---|---|---|
Bed Length | 6 ½ ft | 8 ½ ft | 10 ½ ft | 12ft | 14ft |
Width of bed | 375mm | 450mm | 500mm | 550mm | 600mm |
Height of center | 300mm | 400mm | 450mm | 500mm | 550mm |
Swing over bed | 600mm | 800mm | 900mm | 1000mm | 1100mm |
Swing over cross slide | 325mm | 530mm | 610mm | 660mm | 710mm |
Swing in gap | 865mm | 1200mm | 1300mm | 1350mm | 1500mm |
Admit between centers | 1000mm | 1500mm | 2000mm | 2200mm | 2500mm |
No’s of spindle speeds | 8 | 9 | 8 | 8 | 8 |
RPM Range | 30-720 | 30-720 | 25-475 | 25-275 | 25-275 |
Spindle Hollow | 65mm | 90mm | 105mm | 103mm | 103mm |
Metric Threads | 1-14mm | 1-14mm | 1-14mm | 1-14mm | 1-14mm |
With Worth Threads TPI | 2-30TPI | 2-30TPI | 2-30TPI | 2-30TPI | 2-30TPI |
D.P. Threads | 6-80DP | 6-80DP | 6-80DP | 6-80DP | 6-80DP |
No of Feeds | 30 | 30 | 30 | 30 | 30 |
Range of Long Feed | 0.2 to 3.0mm | 0.2 to 3.0mm | 0.2 to 3.0mm | 0.2 to 3.0mm | 0.2 to 3.0mm |
Range of Transverse feed | 0.033 to 0.50 | 0.033 to 0.50 | 0.033 to 0.50 | 0.033 to 0.50 | 0.033 to 0.50 |
Electric motor Hp/Rpm | 3*1440 | 5*1440 | 7.5*1440 | 7.5*1440 | 10*1440 |
