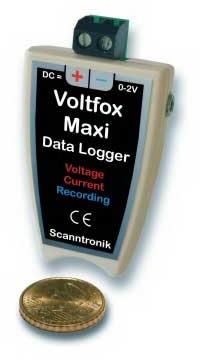

Electricity Data Logger

Our company supplies electricity data logger of optimum quality. The electricity data logger is used for monitoring of current and voltage signals. The voltfox maxi electricity data logger combines a high-resolution 12-bit a/d converter, a 2000hz hi-speed min/max detection module, an alarm output, memory for up to 64,000 readings, a real-time clock and a risc microcontroller into an incredibly powerful data logger system. about electricity data logger :

• in its compact housing, the voltfox maxi combines a high-resolution 12-bit a/d converter, a 2000hz hi-speed min/max detection module, an alarm output, memory for up to 64,000 readings, a real-time clock and a risc microcontroller into an incredibly powerful data logger system.
• the system is designed to measure between 0-2v and can be flexibly expanded to measure between 0-5v, 0-10v, 0-24v or 0-20ma with the aid of the optionally available measuring range adapters.
• the a/d converter that is used is impressive thanks to its high 12-bit resolution and high measuring accuracy.
• the integrated lithium battery supplies the system with energy for up to two years and can be replaced by the user at any time.
• after the quick and uncomplicated configuration of the system, the data logger either starts the measuring task programmed on the pc fully automatically or the system runs endlessly in the so-called ring buffer mode.
• the current and voltage readings are continuously saved by the data logger in a freely configurable recording rhythm.
• thanks to the integrated 2000hz hi-speed min/max detection module, it is possible to detect even short-term fluctuations in measurements precisely and reliably.
• to this end, the signal that is to be analyzed is scanned up to 2000 times per second and the min/max values are additionally stored in the memory for each recording interval.
• the data logger is programmed and evaluated with the universal softfox software under microsoft windows® 98, nt, me, 2000, xp, vista or 7.
• once the voltfox maxi has been connected to a computer via a pc interface cable, the system can be read out or configured immediately.
• the software offers numerous general functions, such as dynamic project management, graphic data analysis, pc-controlled series of measurement, formula-based measuring value conversion, statistic curve analysis, export function, auto backup, flexible zoom and many more.
• the data logger can moreover be configured as required. For this purpose, there are functions available such as the programming of the recording rhythm (1 second to 24 hours), freely programmable and fully automated start/stop mode or endless ring buffer mode, alarm condition for sms alarm system, acoustic alarm or telephone alarm, 2000hz hi-speed min/max monitoring, configuration of real-time clock, digital serial number and so much more.

• stores 16000 readings (option: 64000), sufficient for several years, depending on the interval
• measuring and storing rhythm (1 second to 24 hours) freely adjustable via softfox software
• freely programmable fully automatic start-stop mode or endless ring buffer mode
• standard measuring range : 0 - 2v dc / (including integrated reverse polarity protection)
• measuring range adapters for 0 - 5v, 0 - 10v, 0 - 24v and 0 - 20ma available as option
• resolution of the a/d converter: 12 bit, i.e. 0.5 mv (500uv) at 0 - 2 v dc
• measuring tolerance :< 0.2 % (independent of the measuring range)
• hi-speed min/max detection with up to 2000hz available for every measuring interval
• flexible alarm output (even for the min/max readings) for e.g. Sms alarm system, acoustic alarm, telephone alarm etc.
• formula-based conversion of measuring values using the optional softfox software
• many other external sensors can be connected to the data logger
• crystal oscillator controlled real-time clock and real-time calendar integrated
• measuring data preserved via eeprom memory even without batteries
• power supply: 3v lithium battery. Can be replaced at any time. Battery life span up to 2 years
• wall holder available as option
• data logger dimensions : 65 x 35 x 18 mm (h x w x d), 25g including battery
