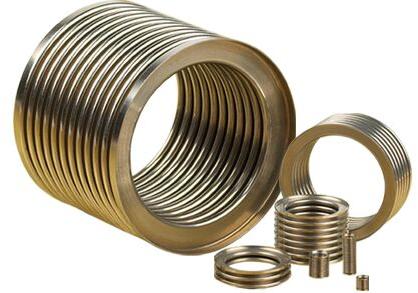

Electroformed Metal Bellows

FEATURES
Thinnest wall construction (as thin as .0002 inch) for optimum sensitivity
25x more sensitive than hydroformed bellows
Provide large deflections with minute forces – as small as 4 grams.
Superb flexibility – ideal for hermetic sealing, pressure sensors and valve seals
Compress up to 60% of their free length
Infinite cycle life expectancy with 100,000 cycles standard
Leak tight to eliminate risk of contamination
Lightweight, low mass
No tooling chargesToday, OEMs worldwide rely on Servometer® bellows daily to deliver precise control in thousands of Industrial, Medical, Energy, Semiconductor and UHV applications as well. If you have a project or application idea and you think a bellows is the right part for the job, our engineering team will work with you providing professional design assistance to make it possible.

Servometer electrodeposited bellows are available in a wide range of sizes, lengths and materials including nickel, copper, gold and silver. They can be custom manufactured in various wall thicknesses with outer diameters ranging from 0.020 inch to 12.0 inches and convolution lengths as long as 18.0 inches. We also have 16 standard sizes that come right off teh shelf and are ready to test in your next OEM project. These bellows are available for quick purchase and delivery. See the standard bellows sizes here.
