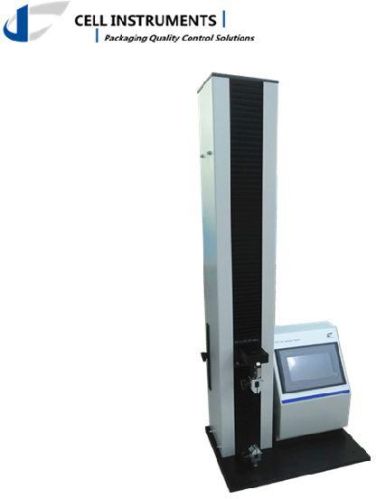

Electronic Tensile Strength Tester

We are offering electronic tensile strength tester can be used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and other performance of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, release paper, protection films, combined caps, aluminum foil, diaphragm, back sheets, non-woven fabrics, rubber, paper, etc.
Electronic tensile strength tester features
1. 7 inch tft touch screen makes parameter setting and test operation easy and convenient.
2. plc programmable logic controller realizes precise control of the driving system and the overall performance of the instrument.
3. precision ball screw for accurate speed and displacement.
4. test speed is adjustable.
5. tensile and compression tests are available.
6. multiple fixtures available for other types of pulling and compression tests.
7. limiting device and automatic returning function ensure safe operation.
electronic tensile strength tester specifications
test range 0-200n (standard, 50n,100n,500n,1000n are optional)
speed 1-500 mmm 10 mmm (stepless speed changing)
accuracy 0.5% f.s.
Standards
iso 37, astm d882, astm e4, astm d3330, astm f904,astm f88, astm d1938, jis p8113, gb 8808
