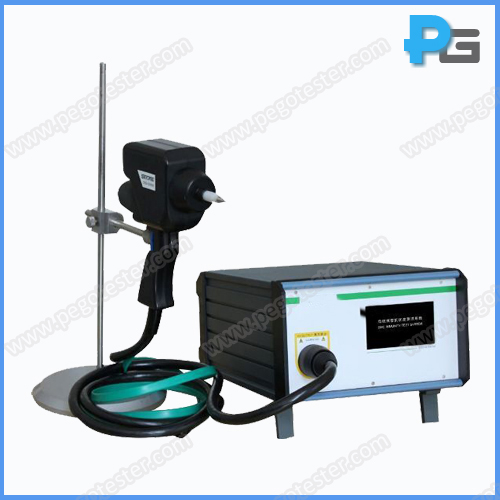

Electrostatic Discharge Generator, Brand Name : Pegogroup

We are offering esd-2000q electrostatic discharge generator
1) introduction:
esd simulator (esd gun) is completely meet the requirements of iec61000-4-2 and gbt17626.2. The esd generator is designed for the assessment of electrical and electronic equipment to withstand esd performance. Electrostatic discharge generator is widely apply to the fields of industry control equipment, household appliance, chemical electronics,communication electronics,components, auto control equipment and etc.
2. Parameters:
1) contact discharge:1－30kv ±3％, air discharge:0.1－30kv ±3％
2) holding time:>5s
3) polarity of output voltage: positive, negative, positivenegative auto
4) trigger mode: single,counting,20pps,other
5) discharge interval:0.05~99.99s
6) numbers of discharge:1~9999
7) energy storage capacitance: 150pf ±10％(replaceable)
8) discharge resistor: 330ω ±10％（replaceable)
9) waveform of contact discharge:meet the standards of eniec 61000-4-2，gbt 17626.2
10) rising time:0.8ns ±25％
11) environment: temperature:15°c－35°c;humidity:10%－75%
12) power supply:ac220±10％，5060hz，300w
