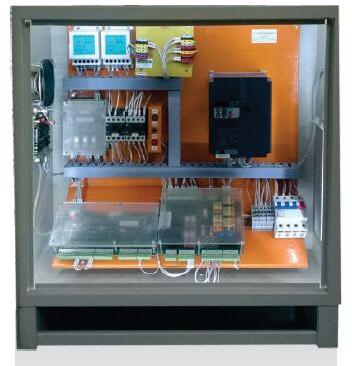

Elevator Control Panel

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Features: SMD Designed,Microcontroller based control board for all Complex functions. PCBs are soldier in fully Automatic pick & Place robotic machine. Which will remove all errors. OPTO-isolated....

View More Details

Send Enquiry

Company Information

Excella Electronis

Ghatkopar, Mumbai, Maharashtra

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Features:

SMD Designed,Microcontroller based control board for all Complex functions.
PCBs are soldier in fully Automatic pick & Place robotic machine. Which will remove all errors.
OPTO-isolated inputs & outputs(for high reliable operations) with LED indications & available in both 12VDC & 24 VDC.
All the input & output are Carrying LED indication on mother board for quick debugging.
Call register LED output for car calls & landing calls.
Call register LED & call push button are on single wire,which reduce wiring.
Flashing target floor register LED.
Position & direction indicator in panel to monitor the car movement.
7-segment output is short-circuit protected.In a short circuit case the concerned output is shut down until problem is removed.
Two tire speed control logic to avoid over travelling due to failure of floor position sensor.
Supports all type of gatelocks.
Auto fan operation for energy saving.
Auto mode/attendant mode operation.
Landing call buzzer output for attendant mode.
Fireman operation.
ARD possible.
110VAC interlocking safety circuit.
Slow L/S,Terminal(direction) L/S & Final L/S facility.

Specifications:

Power Supply: 3 Phase,415VAC,50Hz,4 Wire.
Controlling: Down Collective/Full Collective & Selective.
Speed: Upto 1.0 MPS.
Type: Car Top Reeds(3 Reeds)/All Reeds(floor Reeds).
Door Operation: Auto Door/Manual Door.
Floor: 3 Reeds Type:G + 7 Auto Door & Manual Door
: All Reeds Type:G + 7 Manual Door & G + 5 Auto Door.

Optional:
