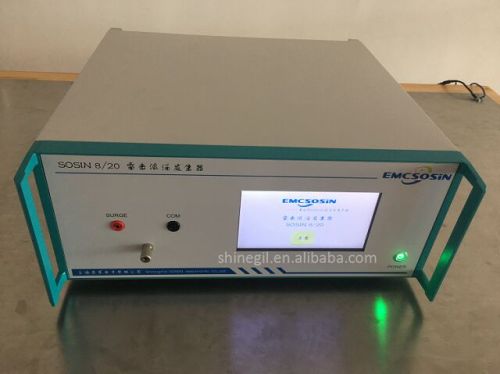

EMC Test Surge Generator Fully Meet The Standard IEC / EN 61000-4-5

Surge, unlike ESD and EFT, has a longer period and a higher power.
Surge pulses occur due to direct or indirect lightning strikes or by power system switching transients caused by switching inductive loads or short circuits.
This leads to currents or electromagnetic fields causing high voltage or current transients. The energy is particularly large. And the impact on the product may be destructive.
A lightning surge generator is used to evaluate the performance of device subjected to high energy disturbances from the power line port and other signal line ports.
Our surge generators simulate these disturbances for all the necessary voltage levels in accordance with IEC EN 61000-4-5. See the following for more details.
Features
1) Fully Compliant with latest Standards IEC EN 61000-4-5
2) User friendly 7inch Touch Panel Display
3) Support multi-language & facilitate users
4) Built-in environment self-test program
5) Pre-programmed IEC 61000-4-5 test settings
6) RS232 interface, PC control operation & printable test report
7) Comfortable use and convenient operation
Technical data
1) Model: SOSIN 820
2) Surge Waveform: Open-circuit voltage wave: 1.2 50μs
Short-circuit current wave: 8 20μs
3) Output Voltage: 5~ ± 660V
4) Short-circuit Current: 2.5~ 330A
5) Polarity: Positive negative alternating
6) Phase Angle: 0~ 359°synchronous, asynchronous, or automatic
7) Effective output impedance: 2Ω
8) Coupling decoupling network: Built-in, 10A (customer specific on demand)
9) Count: 1~ 9999
10) Interval: 5~ 9999s
11) Power Supply: AC 220V ±10% 50 60Hz
12) Ambient Temperature: 15℃~35℃
