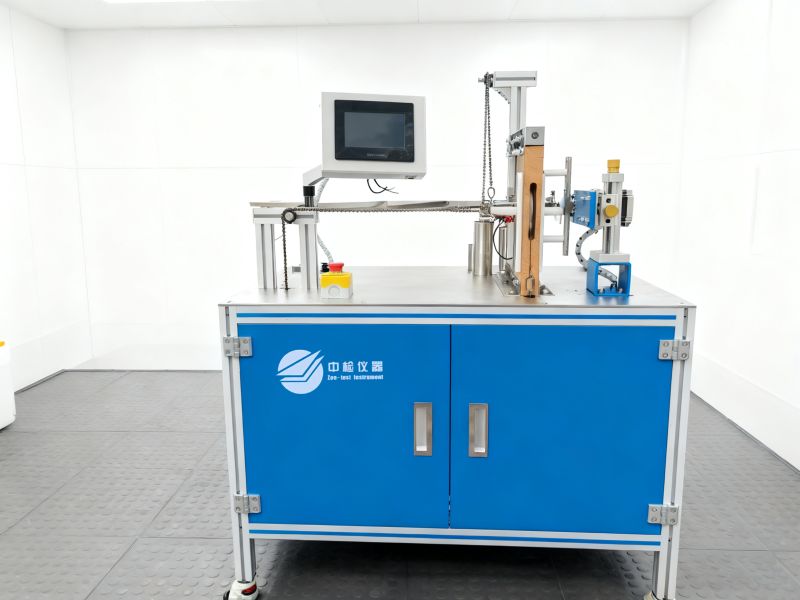

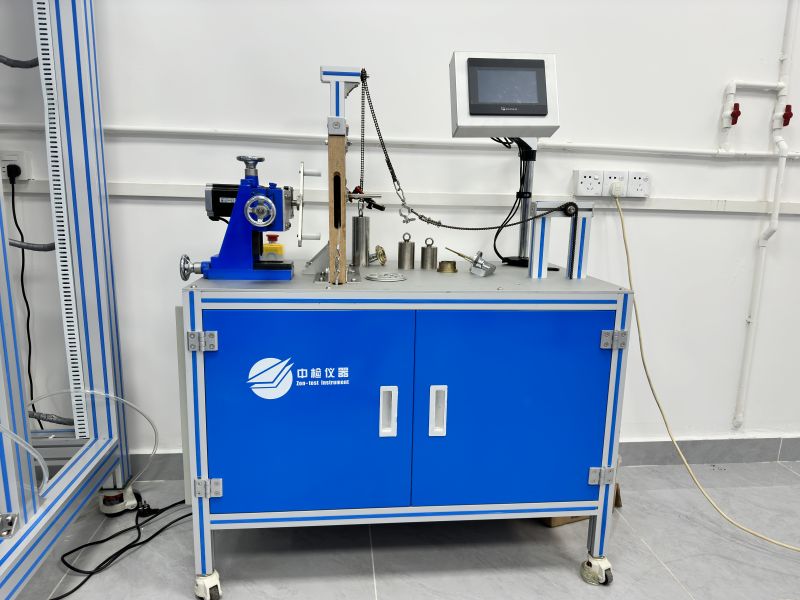

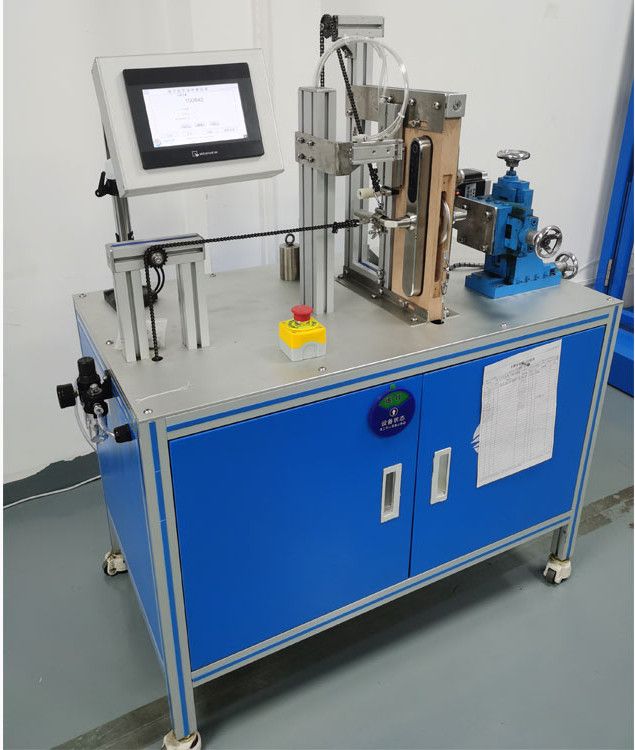

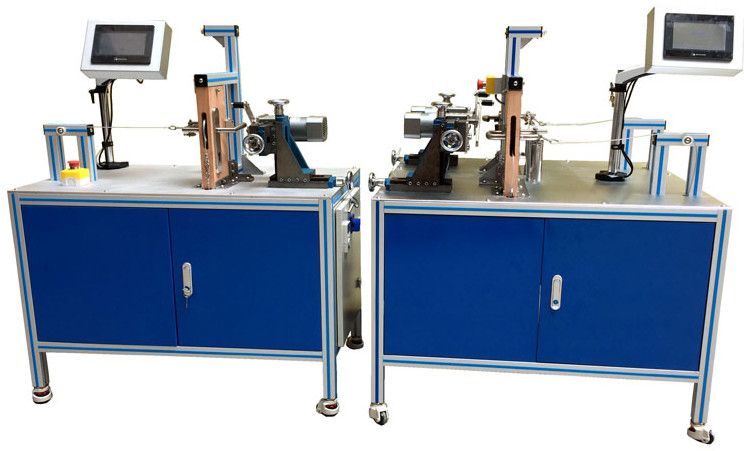

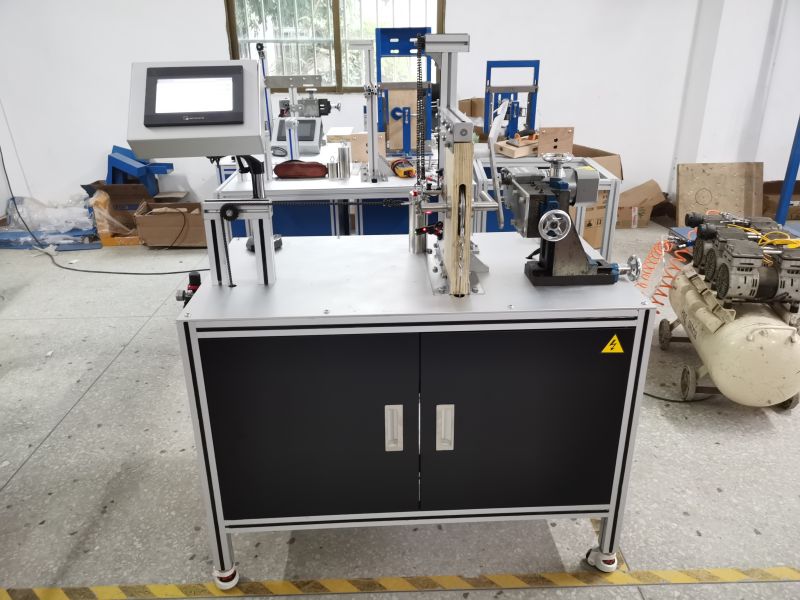

EN Door Handle Durability Test Machine, Power Source : Electric power

Test equipment function：

     The door handle durability test bench is specially designed for typical European door handle that can be separately sold to user. It is used to one vertical load to simulate the loading of mortice lock and another horizontal load to simulate the loading of pull force when open to the door. It is easy to adjust the xyz position of driving motor to fit with different type of door handle. It is PLC controlled device and can monitor any failure and stop testing on time.

      Standards： EN 1906 7.3.6 Durability of mechanism

Equipment parameters：

Model：ZNEN1906-1

Bench：Standalone table with casters

Size：L 1 m * W 0.8 m * H 1.4 m

Handle mounting block：350mm * 150mm * 40mm

Test station：one or two test stations

Handle angle：30~60 degree adjustable

Load P：60N，100N, changeable

Load L：60N，100N, changeable

Panasonic PLC control，failure monitoring

Standards： EN 1906 7.3.6 Durability of mechanism
