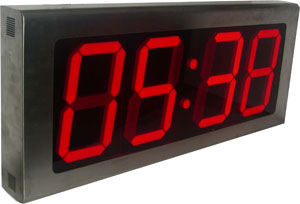

ETHERNET BASED CLOCK, Display Type : SG = 7 SEGMENT

Get Latest Price

Display TypeSG = 7 SEGMENT
SW = SIDE WALL
SS = SINGLE SIDE / BB = BACK TO BACK
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

DYNATEK

Dahisar, Mumbai, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Display TypeSG = 7 SEGMENT
RS : RS 485 BUS
4 inch ( 480 X 185 X 65 mm )
8 inch ( 750 X 320 X 80 mm )
SW = SIDE WALL
10 inch ( 950 X 400 X90 mm )
SS = SINGLE SIDE / BB = BACK TO BACK
6 inch ( 575 X 250 X 80 mm )
LE = LED TYPE
R = ROOF
Sizes for clock :2.3 inch ( 315 X 115 X 60 mm )
Model :NET : NETWORK CLOCK
SP : SYNC PULSE ( 3 WIRE)
Mounting Type :W = WALL

This system is designed with a latest technology having a TCP-IP communication facility. In this system, your existing LAN Network will be utilized for time synchronizing.
PC will be connected to your existing LAN network through LAN switch & Dynatek Time Software will be loaded to PC now this PC acts as a Master & communicates “ PC TIME” to all the clocks connected in LAN network. Hence there is no need of a separate Master Clock. Master PC will be provided with GPS receiver(optional) to synchronize GPS TIME. There is no need to keep the PC continuously “ON”, because each slave clock is provided with RTC hence it works as a standalone clock, therefore even though a PC is not in operation for 1 or 2 days all the clocks will show uniform time.

Advantages of TCP-IP Communication facility:-


Existing LAN network can be used for uniform time synchronization. There is no need of huge Cabling work. Any no. of clocks can be connected. Network connectivity Status can be checked through PC. Installation & maintenance cost is very low as compare to conventional clock system. Time synchronizing software can be loaded to any working PC in LAN Network There is no need to keep PC continuously “ON”. Any Converter for PC communication is not required. Each Clock can be assigned individual IP address. GMT offset is settable. Day light saving mode. GPS receiver connectivity.
